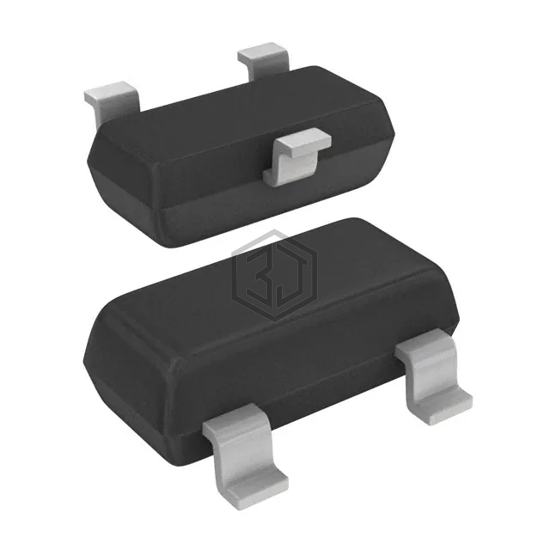

MOSFET N-CH 60V 260MA SOT323-3
PMF3800SN,115 is a Transistors - FETs, MOSFETs - Single manufactured by NXP USA Inc.. MOSFET N-CH 60V 260MA SOT323-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-70, SOT-323.
In Stock: 1,895,250
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 260mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 4.5Ohm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 3.3V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 0.85 nC @ 10 V |
| Vgs (Max) | ±15V |
| Input Capacitance (Ciss) (Max) @ Vds | 40 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 560mW (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-70 |
| Package / Case | SC-70, SOT-323 |
Submit your RFQ for PMF3800SN,115 and get a quote within 24 hours.
