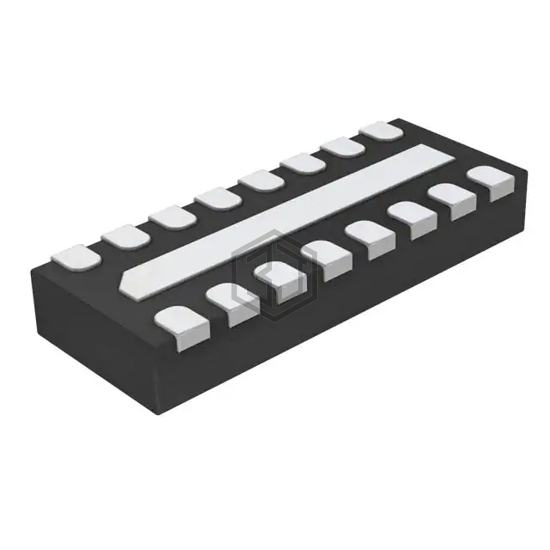

FILTER RC(PI) 100 OHM/23PF SMD
PEMI8QFN/RT,132 is a EMI/RFI Filters (LC, RC Networks) manufactured by NXP USA Inc.. FILTER RC(PI) 100 OHM/23PF SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 16-XFDFN Exposed Pad, size / dimension 0.130" L x 0.047" W (3.30mm x 1.20mm).
In Stock: 38,437
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Low Pass |
| Filter Order | 2nd |
| Technology | RC (Pi) |
| Number of Channels | 8 |
| Center / Cutoff Frequency | - |
| Attenuation Value | 27dB @ 800MHz ~ 3GHz |
| Resistance - Channel (Ohms) | 100 |
| Current | - |
| Values | R = 100Ohms, C = 23pF (Total) |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Applications | LAN, PCS, WAN |
| Voltage - Rated | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-XFDFN Exposed Pad |
| Size / Dimension | 0.130" L x 0.047" W (3.30mm x 1.20mm) |
| Height | 0.020" (0.50mm) |
