PARALLEL I/O PORT, 40-BIT, 8 I/O

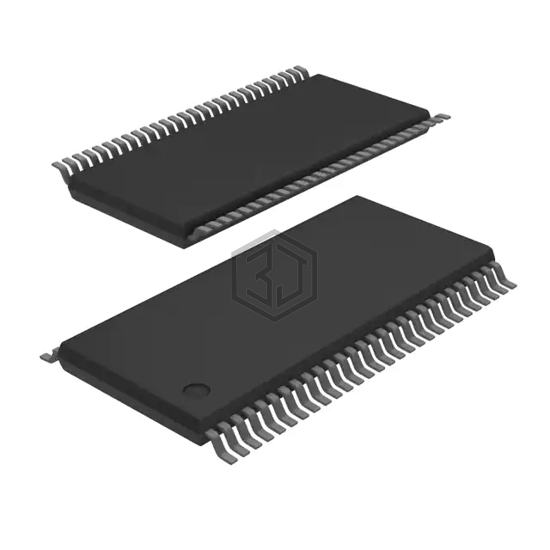

PCA9506DGG,512 is a Interface - I/O Expanders manufactured by NXP USA Inc.. PARALLEL I/O PORT, 40-BIT, 8 I/O. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2.3V ~ 5.5V, package / case 56-TFSOP (0.240", 6.10mm Width).
In Stock: 1,115
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of I/O | 40 |
| Interface | I²C |
| Interrupt Output | Yes |
| Features | POR |
| Output Type | Push-Pull |
| Current - Output Source/Sink | 10mA, 25mA |
| Clock Frequency | 400 kHz |
| Voltage - Supply | 2.3V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 56-TFSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 56-TSSOP |
PCA9506DGG,512 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PCA9506DGG,518 | NXP USA Inc. | IC I/O EXPANDER I2C 40B 56TSSOP | 100% | View |
| PCA9555D,112 | NXP USA Inc. | IC I/O EXPANDER I2C 16B 24SOIC | 91% | View |
| PCA9539RGER | Texas Instruments | IC I/O EXPANDER I2C 16B 24VQFN | 91% | View |
| PCA9539PW/Q900,118 | NXP USA Inc. | IC I2C BUS/SMBUS 16BIT 24TSSOP | 88% | View |
| PCA9539APW,118 | NXP USA Inc. | IC GPIO EXPANDER 24TSSOP | 87% | View |
| TCA9535RGER | Texas Instruments | IC I/O EXPANDER I2C 16B 24VQFN | 87% | View |
Submit your RFQ for PCA9506DGG,512 and get a quote within 24 hours.
