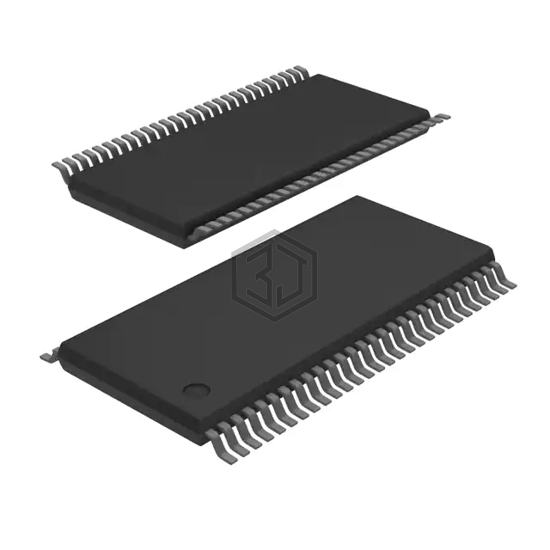

IC I/O EXPANDER I2C 40B 56TSSOP
PCA9505DGG,112 is a Interface - I/O Expanders manufactured by NXP USA Inc.. IC I/O EXPANDER I2C 40B 56TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2.3V ~ 5.5V, package / case 56-TFSOP (0.240", 6.10mm Width).
In Stock: 2,787
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of I/O | 40 |
| Interface | I²C |
| Interrupt Output | Yes |
| Features | POR |
| Output Type | Push-Pull |
| Current - Output Source/Sink | 100µA, 25mA |
| Clock Frequency | 400 kHz |
| Voltage - Supply | 2.3V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 56-TFSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 56-TSSOP |
PCA9505DGG,112 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PCA8575PW,112 | NXP USA Inc. | IC I/O EXPANDER I2C 16B 24TSSOP | 91% | View |
| PCA8575DK,118 | NXP USA Inc. | IC I/O EXPANDER I2C 16B 24SSOP | 91% | View |
| PCA8574ATS,118 | NXP USA Inc. | IC I/O EXPANDER I2C 8B 20SSOP | 83% | View |
| PCA9500PW,118 | NXP USA Inc. | IC I/O EXPANDER I2C 8B 16TSSOP | 82% | View |
| PCA9501D,112 | NXP USA Inc. | IC I/O EXPANDER I2C 8B 20SOIC | 82% | View |
| PCA9675PW/S911,118 | NXP USA Inc. | IC I/O EXPANDER I2C 16B 24TSSOP | 56% | View |
Submit your RFQ for PCA9505DGG,112 and get a quote within 24 hours.
