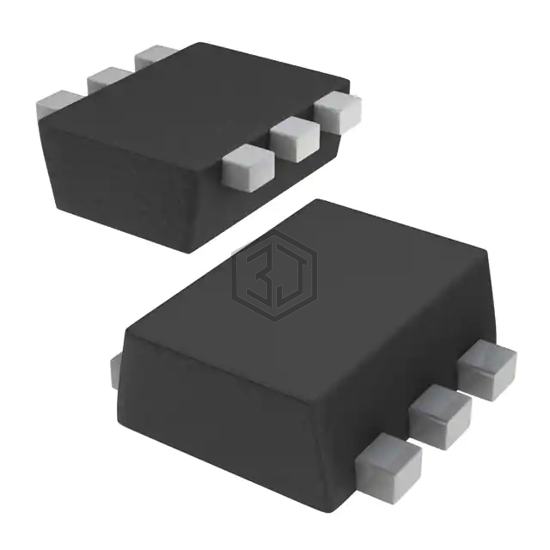

TRANS NPN PREBIAS/PNP SOT666
PBLS1504V,115 is a Transistors - Bipolar (BJT) - Arrays, Pre-Biased manufactured by NXP USA Inc.. TRANS NPN PREBIAS/PNP SOT666. Key specifications: mounting type Surface Mount, package / case SOT-563, SOT-666, current - collector (ic) (max) 100mA, 500mA, power - max 300mW.
In Stock: 15,539
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Transistor Type | 1 NPN Pre-Biased, 1 PNP |
| Current - Collector (Ic) (Max) | 100mA, 500mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V, 15V |
| Resistor - Base (R1) | 22kOhms |
| Resistor - Emitter Base (R2) | 22kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 5mA, 5V / 150 @ 100mA, 2V |
| Vce Saturation (Max) @ Ib, Ic | 150mV @ 500µA, 10mA / 250mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 1µA, 100nA |
| Frequency - Transition | 280MHz |
| Power - Max | 300mW |
| Mounting Type | Surface Mount |
| Package / Case | SOT-563, SOT-666 |
| Supplier Device Package | SOT-666 |
Submit your RFQ for PBLS1504V,115 and get a quote within 24 hours.
