0.1A 50V 2-ELEMENT NPN AND PNP

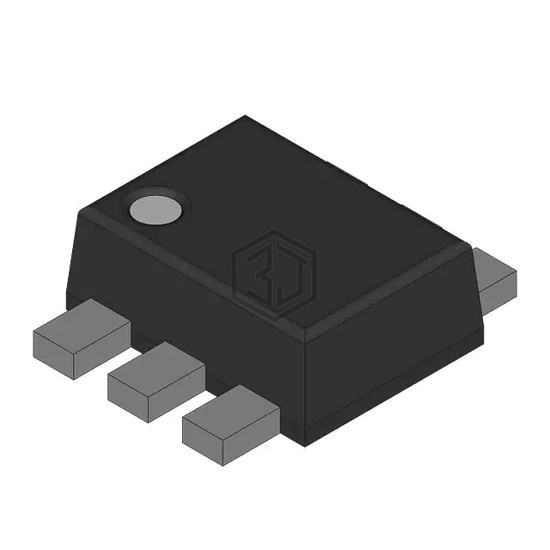

PBLS1503V,115-NXP is a Transistors - Bipolar (BJT) - Arrays, Pre-Biased manufactured by NXP USA Inc.. 0.1A 50V 2-ELEMENT NPN AND PNP. Key specifications: mounting type Surface Mount, package / case SOT-563, SOT-666, current - collector (ic) (max) 100mA, 500mA, power - max 300mW.
In Stock: 12,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Transistor Type | 1 NPN Pre-Biased, 1 PNP |
| Current - Collector (Ic) (Max) | 100mA, 500mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V, 15V |
| Resistor - Base (R1) | 10kOhms |
| Resistor - Emitter Base (R2) | 10kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 5mA, 5V, 200 @ 10mA, 2V |
| Vce Saturation (Max) @ Ib, Ic | 150mV @ 500µA, 10mA, 250mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 1µA, 100nA |
| Frequency - Transition | 280MHz |
| Power - Max | 300mW |
| Mounting Type | Surface Mount |
| Package / Case | SOT-563, SOT-666 |
| Supplier Device Package | SOT-666 |
Submit your RFQ for PBLS1503V,115-NXP and get a quote within 24 hours.
