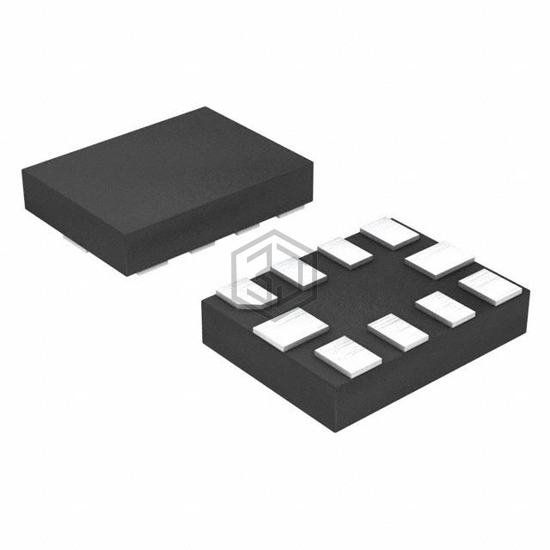

IC ANALOG SWITCH SPDT 10XQFN
NX3L4684GM,132 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by NXP USA Inc.. IC ANALOG SWITCH SPDT 10XQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 10-XFQFN, number of circuits 2.
In Stock: 3,625
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 750mOhm |
| Channel-to-Channel Matching (ΔRon) | 40mOhm |
| Voltage - Supply, Single (V+) | 1.4V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 45ns, 20ns |
| -3db Bandwidth | 20MHz |
| Charge Injection | 50pC |
| Channel Capacitance (CS(off), CD(off)) | 35pF |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Crosstalk | -90dB @ 100kHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-XFQFN |
| Supplier Device Package | 10-XQFN (1.55x2) |
NX3L4684GM,132 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NX3L4684GM,115 | NXP USA Inc. | IC ANALOG SWITCH SPDT 10XQFN | 100% | View |
| NX3L4051PW-Q100J | NXP USA Inc. | IC SWITCH ANLG 8CH 16TSSOP | 86% | View |
| NX3L4051PW,118 | NXP USA Inc. | IC ANALOG SWITCH 8CH 16TSSOP | 86% | View |
| ADG823BRMZ-REEL7 | Analog Devices Inc. | IC SWITCH DUAL SPST 8MSOP | 72% | View |
| ADG822BRMZ-REEL7 | Analog Devices Inc. | IC SWITCH DUAL SPST 8MSOP | 72% | View |
| ADG823BRMZ | Analog Devices Inc. | IC SWITCH DUAL SPST 8MSOP | 72% | View |
Submit your RFQ for NX3L4684GM,132 and get a quote within 24 hours.
