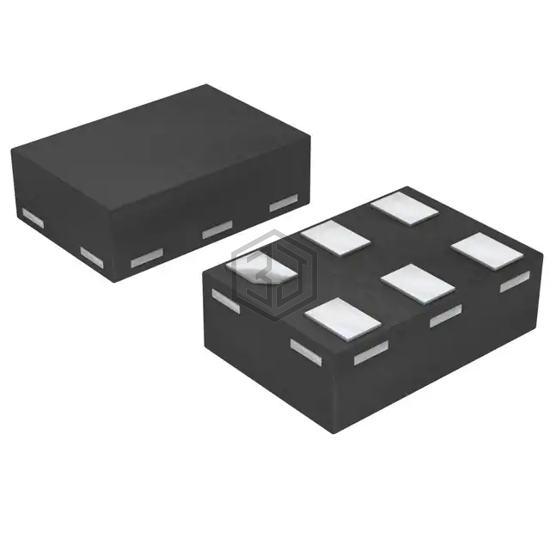

IC SWITCH SPDT 6XSON
NX3L1T3157GM,115 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by NXP USA Inc.. IC SWITCH SPDT 6XSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 6-XFDFN, number of circuits 1.
In Stock: 7,022
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 500mOhm |
| Channel-to-Channel Matching (ΔRon) | 20mOhm |
| Voltage - Supply, Single (V+) | 1.4V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 40ns, 20ns |
| -3db Bandwidth | 60MHz |
| Charge Injection | 15pC |
| Channel Capacitance (CS(off), CD(off)) | 35pF |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-XFDFN |
| Supplier Device Package | 6-XSON, SOT886 (1.45x1) |
NX3L1T3157GM,115 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NX3L1T53GM,125 | NXP USA Inc. | IC ANALOG SWITCH SPDT 8XQFN | 100% | View |
| NX3L1T53GT,115 | NXP USA Inc. | IC ANALOG SWITCH SPDT XSON8U | 100% | View |
| NX3L1T5157GMAZ | NXP USA Inc. | IC ANALOG SWITCH SPDT XSON6 | 100% | View |
| NX3L2467PW,118 | NXP USA Inc. | IC ANALOG SWITCH DPDT 16TSSOP | 94% | View |
| NX3L4053PW,118 | NXP USA Inc. | IC ANALOG SWITCH SPDT 16TSSOP | 91% | View |
| XS3A1T5157GSH | Nexperia USA Inc. | XS3A1T5157GS/SOT1202/X2SON6 | 88% | View |
Submit your RFQ for NX3L1T3157GM,115 and get a quote within 24 hours.
