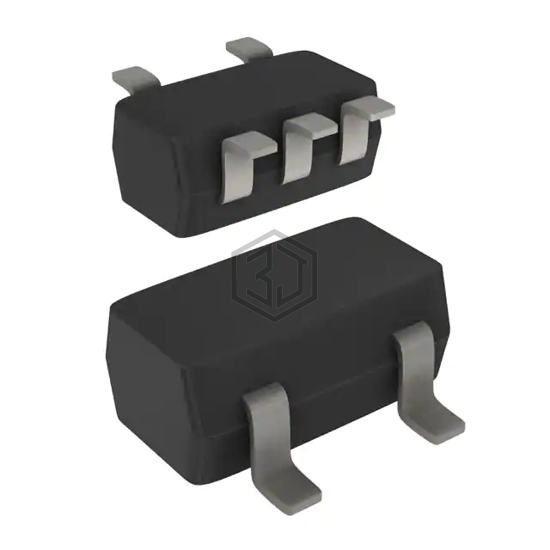

IC SWITCH SPST SINGLE 5TSSOP
NX3L1G66GW,125 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by NXP USA Inc.. IC SWITCH SPST SINGLE 5TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 5-TSSOP, SC-70-5, SOT-353, number of circuits 1.
In Stock: 6,624
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 750mOhm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 1.4V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 23ns, 8ns |
| -3db Bandwidth | 60MHz |
| Charge Injection | 6pC |
| Channel Capacitance (CS(off), CD(off)) | 35pF |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | 5-TSSOP |
NX3L1G66GW,125 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NX3L1G66GM,115 | NXP USA Inc. | IC SWITCH SPDT 6XSON | 100% | View |
| NX3L1G66GM,132 | NXP USA Inc. | IC SWITCH SPDT 6XSON | 100% | View |
| NX3L2G66GD,125 | NXP USA Inc. | IC ANALOG SWITCH SPST XSON8U | 94% | View |
| NX3L2G66GT,115 | NXP USA Inc. | IC SWITCH SPST 8XSON | 94% | View |
| NLAS4051DR2 | onsemi | IC MUX/DEMUX 8X1 16SOIC | 58% | View |
| NLAS4051DTR2 | onsemi | IC MUX/DEMUX 8X1 16TSSOP | 58% | View |
