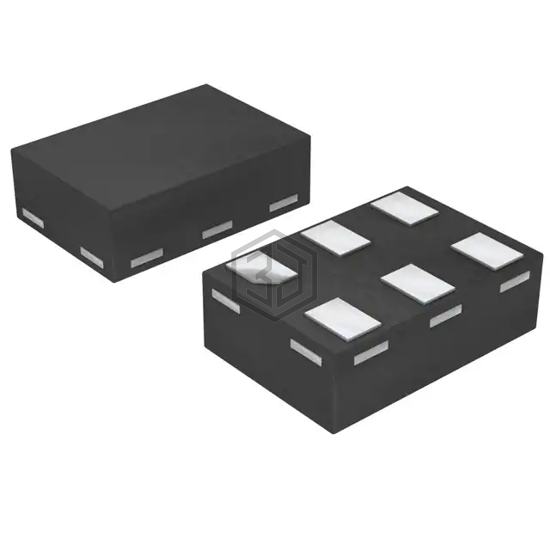

IC ANLG SWITCH SPDT 6XSON
NX3L1G3157GM-Q100X is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by NXP USA Inc.. IC ANLG SWITCH SPDT 6XSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 6-XFDFN, number of circuits 1.
In Stock: 3,695
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 750mOhm |
| Channel-to-Channel Matching (ΔRon) | 20mOhm |
| Voltage - Supply, Single (V+) | 1.4V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 25ns, 10ns |
| -3db Bandwidth | 60MHz |
| Charge Injection | 15pC |
| Channel Capacitance (CS(off), CD(off)) | 35pF |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-XFDFN |
| Supplier Device Package | 6-XSON, SOT886 (1.45x1) |
NX3L1G3157GM-Q100X is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NX3L1G3157GW,125 | NXP USA Inc. | SPDT, 1 FUNC, 1 CHANNEL, CMOS, P | 100% | View |
| NX3L1G3157GMZ | NXP USA Inc. | IC SWITCH SPDT 6XSON | 100% | View |
| NX3L1G3157GM,115 | NXP USA Inc. | IC SWITCH SPDT 6XSON | 100% | View |
| ADG836YCPZ-REEL7 | Analog Devices Inc. | IC SWITCH DUAL SPDT 12LFCSP | 75% | View |
| ADG836LYRM | Analog Devices Inc. | IC SWITCH DUAL SPDT 10MSOP | 75% | View |
| ADG836YRM-REEL7 | Analog Devices Inc. | IC SWITCH DUAL SPDT 10MSOP | 75% | View |
Submit your RFQ for NX3L1G3157GM-Q100X and get a quote within 24 hours.
