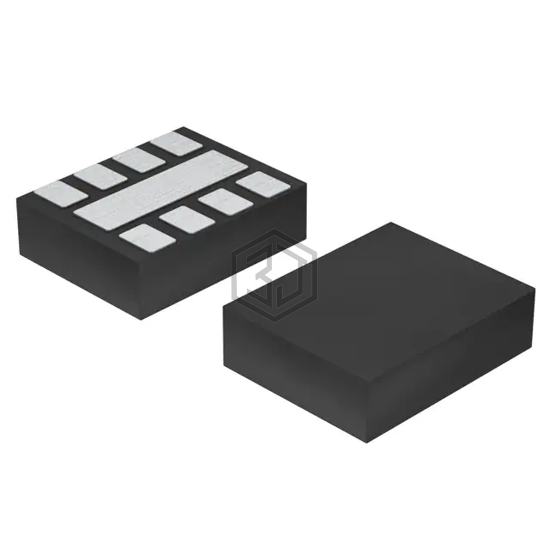

IC COMPARATOR LOW VOLT 8-HXSON
NCX2220GU,115 is a Linear - Comparators manufactured by NXP USA Inc.. IC COMPARATOR LOW VOLT 8-HXSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 8-XFDFN Exposed Pad, output type Rail-to-Rail.
In Stock: 4,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | General Purpose |
| Number of Elements | 2 |
| Output Type | Rail-to-Rail |
| Voltage - Supply, Single/Dual (±) | 1.3V ~ 5.5V |
| Voltage - Input Offset (Max) | 30mV @ 5.5V |
| Current - Input Bias (Max) | 1pA |
| Current - Output (Typ) | - |
| Current - Quiescent (Max) | 5µA |
| CMRR, PSRR (Typ) | 70dB CMRR, 80dB PSRR |
| Propagation Delay (Max) | 0.8µs |
| Hysteresis | 20mV |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 8-XFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Supplier Device Package | DFN1714-8 |
NCX2220GU,115 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NCX2220GM,125 | NXP USA Inc. | IC COMP RAIL-TO-RAIL 8XQFN | 100% | View |
| NCX2202GMZ | NXP USA Inc. | IC COMPARATOR LOW VOLTAGE 6XSON | 95% | View |
| AZV3001FZ4-7 | Diodes Incorporated | IC COMPARATOR X2-DFN1410-6 | 71% | View |
| TC75W58FU,LF | Toshiba Semiconductor and Storage | IC COMP GP CMOS DUAL SM8 | 65% | View |
| TC75S56FUTE85LF | Toshiba Semiconductor and Storage | IC COMP SNGL GP PP CMOS USV | 58% | View |
| TC75S56F,LF | Toshiba Semiconductor and Storage | IC C0MP GP CMOS PUSH-PULL SMV | 58% | View |
Submit your RFQ for NCX2220GU,115 and get a quote within 24 hours.
