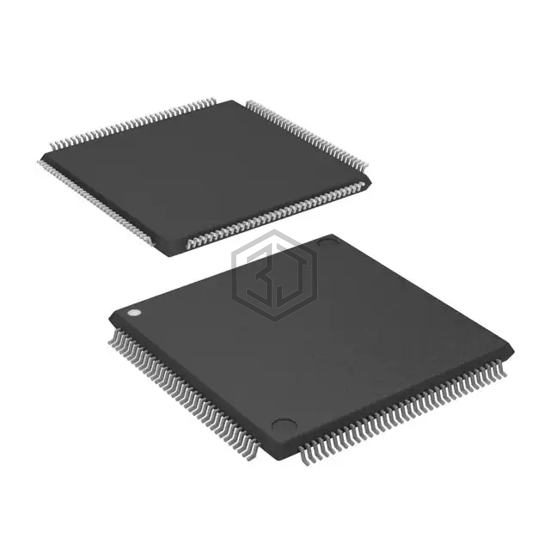

IC MCU 16BIT 256KB FLASH 144LQFP
MC9S12XHZ256VAGR is a Embedded - Microcontrollers manufactured by NXP USA Inc.. IC MCU 16BIT 256KB FLASH 144LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), voltage - supply (vcc/vdd) 2.35V ~ 5.5V, package / case 144-LQFP.
In Stock: 8,712
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Core Processor | HCS12X |
| Core Size | 16-Bit |
| Speed | 80MHz |
| Connectivity | CANbus, EBI/EMI, I²C, LINbus, SCI, SPI |
| Peripherals | LCD, Motor control PWM, POR, PWM, WDT |
| Number of I/O | 117 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.35V ~ 5.5V |
| Data Converters | A/D 16x8/10b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 144-LQFP |
| Supplier Device Package | 144-LQFP (20x20) |
MC9S12XHZ256VAGR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PIC32MX320F128LT-80V/BG | Microchip Technology | IC MCU 32BIT 128KB FLSH 121TFBGA | 100% | View |
| PIC32MX675F512L-80V/PT | Microchip Technology | IC MCU 32BIT 512KB FLASH 100TQFP | 95% | View |
| SPC5748GK0AVKU6 | NXP USA Inc. | IC MCU 32BIT 6MB FLASH 176LQFP | 95% | View |
| SPC5744PK1AMMM9R | NXP USA Inc. | IC MCU 32B 2.5MB FLASH 257MAPBGA | 95% | View |
| SPC5645CCF0VLU1R | NXP USA Inc. | IC MCU 32BIT 2MB FLASH 176LQFP | 93% | View |
| SPC56EC64L7B9E0X | STMicroelectronics | IC MCU 32BIT 1.5MB FLASH 176LQFP | 93% | View |
Submit your RFQ for MC9S12XHZ256VAGR and get a quote within 24 hours.
