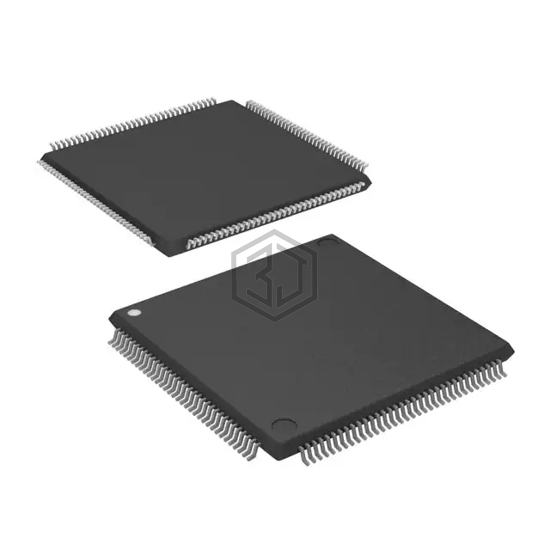

IC MCU 16BIT 768KB FLASH 144LQFP
MC9S12XEP768MAG is a Embedded - Microcontrollers manufactured by NXP USA Inc.. IC MCU 16BIT 768KB FLASH 144LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 1.72V ~ 5.5V, package / case 144-LQFP.
In Stock: 2,310
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Core Processor | HCS12X |
| Core Size | 16-Bit |
| Speed | 50MHz |
| Connectivity | CANbus, EBI/EMI, I²C, IrDA, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 119 |
| Program Memory Size | 768KB (768K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 48K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.72V ~ 5.5V |
| Data Converters | A/D 24x12b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 144-LQFP |
| Supplier Device Package | 144-LQFP (20x20) |
MC9S12XEP768MAG is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| S912XEQ384F1MAGR | NXP USA Inc. | IC MCU 16BIT 384KB FLASH 144LQFP | 100% | View |
| S912XEQ384J3MAGR | Freescale Semiconductor | IC MCU 16BIT 384KB FLASH 144LQFP | 100% | View |
| S912XES384J3MAAR | NXP USA Inc. | IC MCU 16BIT 384KB FLASH 80QFP | 90% | View |
| C8051F507-IQ | Silicon Labs | IC MCU 8BIT 32KB FLASH 32LQFP | 78% | View |
| C8051F582-IQ | Silicon Labs | IC MCU 8BIT 128KB FLASH 32LQFP | 78% | View |
| C8051F553-IM | Silicon Labs | IC MCU 8BIT 32KB FLASH 24QFN | 77% | View |
Submit your RFQ for MC9S12XEP768MAG and get a quote within 24 hours.
