IC MCU 8BIT 16KB FLASH 28TSSOP

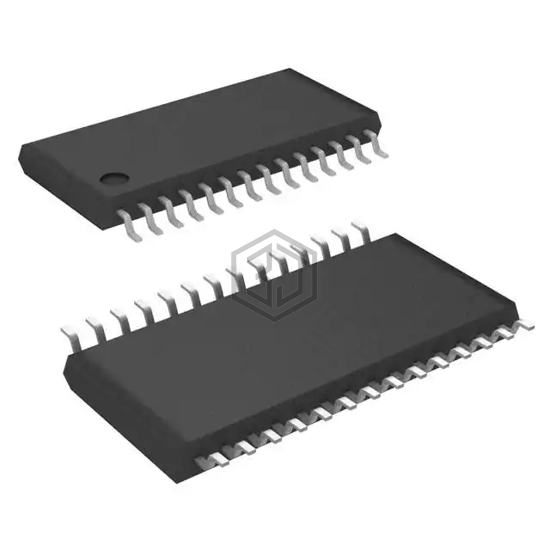

MC9S08SH16VTL is a Embedded - Microcontrollers manufactured by NXP USA Inc.. IC MCU 8BIT 16KB FLASH 28TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), voltage - supply (vcc/vdd) 2.7V ~ 5.5V, package / case 28-TSSOP (0.173", 4.40mm Width).
In Stock: 2,420
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Core Processor | S08 |
| Core Size | 8-Bit |
| Speed | 40MHz |
| Connectivity | I²C, LINbus, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 23 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 16x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 28-TSSOP |
MC9S08SH16VTL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| S9S08DZ16F1MLC | Freescale Semiconductor | IC MCU 8BIT 16KB FLASH 32LQFP | 99% | View |
| PIC32MX130F064BT-V/SO | Microchip Technology | IC MCU 32BIT 64KB FLASH 28SOIC | 97% | View |
| PIC32MX230F256BT-V/SS | Microchip Technology | IC MCU 32BIT 256KB FLASH 28SSOP | 95% | View |
| PIC32MX270F256BT-V/ML | Microchip Technology | IC MCU 32BIT 256KB FLASH 28QFN | 95% | View |
| MC9S08SH16MTG | NXP USA Inc. | IC MCU 8BIT 16KB FLASH 16TSSOP | 92% | View |
| S912XHY128F0VLMR | NXP USA Inc. | IC MCU 16BIT 128KB FLASH 112LQFP | 74% | View |
Submit your RFQ for MC9S08SH16VTL and get a quote within 24 hours.
