IGBT GATE DRIVE IC

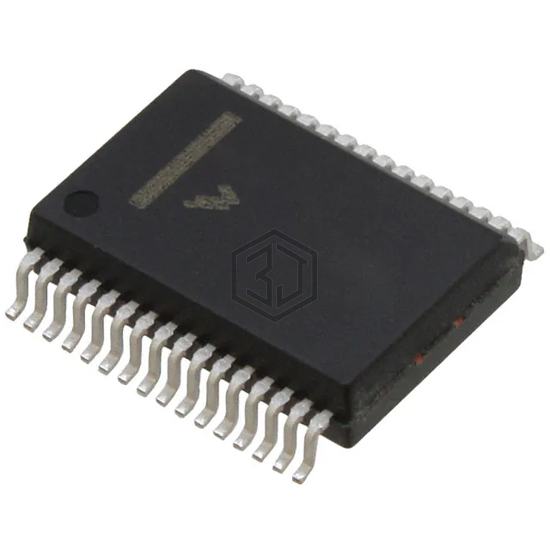

MC33GD3100A3EK is a PMIC - Gate Drivers manufactured by NXP USA Inc.. IGBT GATE DRIVE IC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 3.3V, package / case 32-BSSOP (0.295", 7.50mm Width).
In Stock: 5,898
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 3.3V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 15A, 15A |
| Input Type | - |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | - |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 32-BSSOP (0.295", 7.50mm Width) |
| Supplier Device Package | 32-SOIC |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MGD3100AM38EK | NXP USA Inc. | IC GATE DRVR HALF-BRIDGE 32BSSOP | 100% | View |
| MGD3160AM315EKT | NXP USA Inc. | IC GATE DRVR HIGH-SIDE 32SOIC | 94% | View |
| MGD3160AM338EKR2 | NXP USA Inc. | IC GATE DRVR HIGH-SIDE 32SOIC | 94% | View |
| MGD3160AM318EKR2 | NXP USA Inc. | IC GATE DRVR HIGH-SIDE 32SOIC | 94% | View |
| MC33GD3100EKR2 | NXP USA Inc. | IGBT GATE DRIVE IC | 91% | View |
| MC33GD3100EK | NXP USA Inc. | IGBT GATE DRIVE IC | 91% | View |
Submit your RFQ for MC33GD3100A3EK and get a quote within 24 hours.
