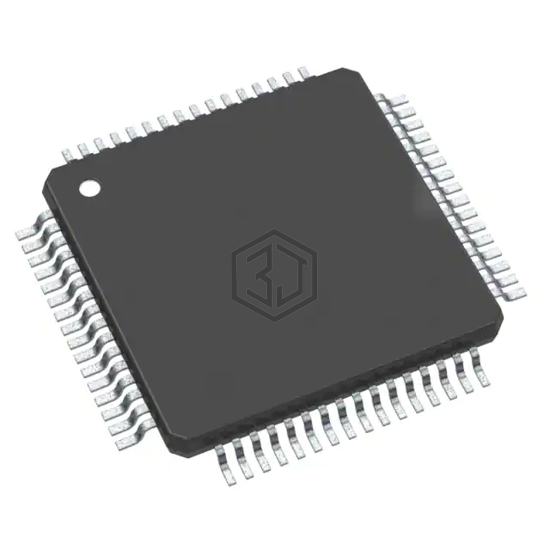

IC MCU M33 256KB/128KB HTQFP64
LPC5536JBD64E is a Embedded - Microcontrollers manufactured by NXP USA Inc.. IC MCU M33 256KB/128KB HTQFP64. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), voltage - supply (vcc/vdd) 1.8V ~ 3.6V, package / case 64-TQFP Exposed Pad.
In Stock: 1,756
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | ARM® Cortex®-M33 |
| Core Size | 32-Bit Single-Core |
| Speed | 150MHz |
| Connectivity | CANbus, Flexcomm, I²C, I²S, I³C, SPI, UART/USART |
| Peripherals | DMA, PWM, WDT |
| Number of I/O | 39 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 13x16b; D/A 1x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 64-TQFP Exposed Pad |
| Supplier Device Package | 64-HTQFP (10x10) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LPC55S66JEV59Y | NXP USA Inc. | IC | 99% | View |
| F28P559SJ6PNARQ1 | Texas Instruments | AUTOMOTIVE C2000 32-BIT MCU WITH | 91% | View |
| PK60FX512VLQ15 | NXP USA Inc. | IC MCU 32BIT 512KB FLASH 144LQFP | 86% | View |
| SAK-TC1796-256F150E BE | Infineon Technologies | IC MCU 32BIT 2MB FLASH 416BGA | 81% | View |
| SPC5644AF0MVZ1R | NXP USA Inc. | IC MCU 32BIT 4MB FLASH 324PBGA | 75% | View |
| SPC5642AF2MVZ1 | Freescale Semiconductor | IC MCU 32BIT 2MB FLASH 324PBGA | 75% | View |
Submit your RFQ for LPC5536JBD64E and get a quote within 24 hours.
