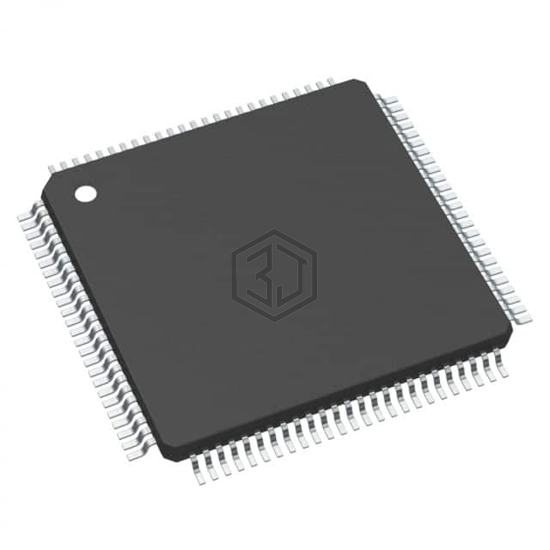

IC MCU M33 256KB/128KB HLQFP100
LPC5536JBD100E is a Embedded - Microcontrollers manufactured by NXP USA Inc.. IC MCU M33 256KB/128KB HLQFP100. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), voltage - supply (vcc/vdd) 1.8V ~ 3.6V, package / case 100-LQFP.
In Stock: 3,569
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | ARM® Cortex®-M33 |
| Core Size | 32-Bit Single-Core |
| Speed | 150MHz |
| Connectivity | CANbus, Flexcomm, I²C, I²S, I³C, SPI, UART/USART, USB2.0 |
| Peripherals | DMA, PWM, WDT |
| Number of I/O | 66 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 23x16b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 100-LQFP |
| Supplier Device Package | 100-HLQFP (14x14) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LPC55S14JBD100Y | NXP USA Inc. | IC MCU 32BIT 128KB FLSH 100HLQFP | 100% | View |
| LPC55S14JBD100K | NXP USA Inc. | IC MCU 32BIT 128KB FLSH 100HLQFP | 100% | View |
| LPC5534JBD64E | NXP USA Inc. | IC MCU M33 128KB/80KB HTQFP64 | 93% | View |
| LPC55S16JBD64E | NXP USA Inc. | IC MCU 32BIT 256KB FLASH 64HTQFP | 92% | View |
| MK61FN1M0VMJ15 | NXP USA Inc. | IC MCU 32BIT 1MB FLSH 256MAPPBGA | 90% | View |
| SPC564A80L7CFAR | STMicroelectronics | IC MCU 32BIT 4MB FLASH 176LQFP | 86% | View |
Submit your RFQ for LPC5536JBD100E and get a quote within 24 hours.
