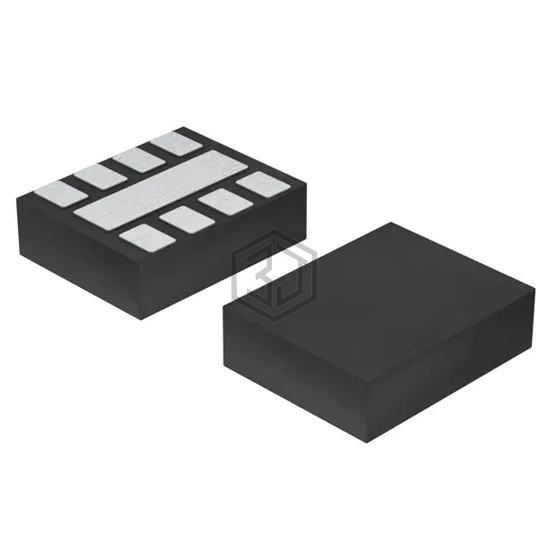

FILTER RC(PI) 100 OHM/30PF SMD
IP4254CZ8-4,118 is a EMI/RFI Filters (LC, RC Networks) manufactured by NXP USA Inc.. FILTER RC(PI) 100 OHM/30PF SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 8-XFDFN Exposed Pad, size / dimension 0.067" L x 0.053" W (1.70mm x 1.35mm).
In Stock: 346,468
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Low Pass |
| Filter Order | 2nd |
| Technology | RC (Pi) |
| Number of Channels | 4 |
| Center / Cutoff Frequency | - |
| Attenuation Value | 28dB @ 800MHz ~ 3GHz |
| Resistance - Channel (Ohms) | 100 |
| Current | - |
| Values | R = 100Ohms, C = 30pF (Total) |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Applications | LAN, WAN |
| Voltage - Rated | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-XFDFN Exposed Pad |
| Size / Dimension | 0.067" L x 0.053" W (1.70mm x 1.35mm) |
| Height | 0.020" (0.50mm) |
Submit your RFQ for IP4254CZ8-4,118 and get a quote within 24 hours.
