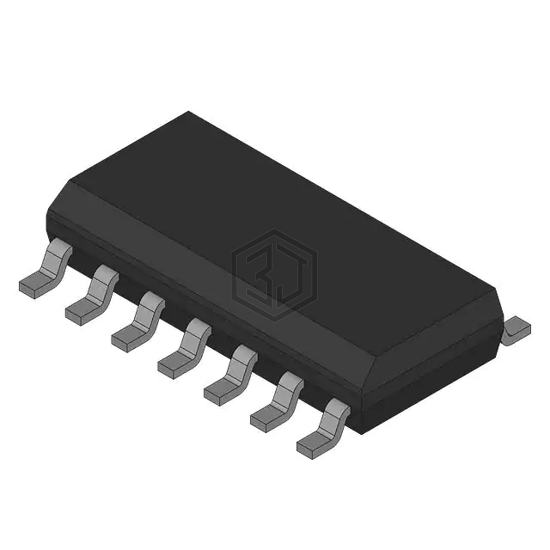

IC GATE XOR 4CH 2-INP 14SO
HEF4030BT-Q100J is a Logic - Gates and Inverters manufactured by NXP USA Inc.. IC GATE XOR 4CH 2-INP 14SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 4.5V ~ 15.5V, package / case 14-SOIC (0.154", 3.90mm Width).
In Stock: 2,930
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | XOR (Exclusive OR) |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 4.5V ~ 15.5V |
| Current - Quiescent (Max) | - |
| Current - Output High, Low | 2.4mA, 2.4mA |
| Logic Level - Low | - |
| Logic Level - High | - |
| Max Propagation Delay @ V, Max CL | 55ns @ 15V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SO |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NC7ST86L6X | Fairchild Semiconductor | IC GATE XOR 1CH 2-INP 6MICROPAK | 69% | View |
| NC7ST86P5 | Fairchild Semiconductor | XOR GATE, HST/T SERIES, 1 FUNC, | 69% | View |
| NC7ST86M5X | onsemi | IC GATE XOR 1CH 2-INP SOT23-5 | 69% | View |
| 74HC1G86GV,125 | Nexperia USA Inc. | IC GATE XOR 1CH 2-INP SC74A | 60% | View |
| 74HC1G86GW,125 | Nexperia USA Inc. | IC GATE XOR 1CH 2-INP 5TSSOP | 60% | View |
| 74HC1G86GV-Q100H | Nexperia USA Inc. | IC GATE XOR 1CH 2-INP SC74A | 60% | View |
Submit your RFQ for HEF4030BT-Q100J and get a quote within 24 hours.
