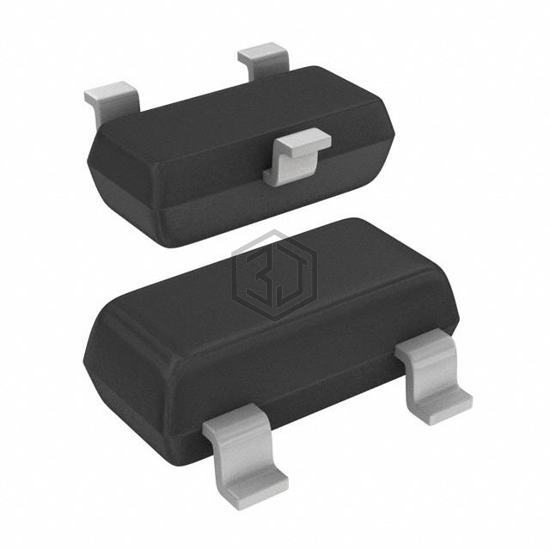

JFET N-CH 40V 0.25W SOT23
BSR56,215 is a Transistors - JFETs manufactured by NXP USA Inc.. JFET N-CH 40V 0.25W SOT23. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3, power - max 250 mW.
In Stock: 8,854
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Voltage - Breakdown (V(BR)GSS) | 40 V |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Drain (Idss) @ Vds (Vgs=0) | 50 mA @ 15 V |
| Current Drain (Id) - Max | 20 mA |
| Voltage - Cutoff (VGS off) @ Id | 4 V @ 0.5 nA |
| Input Capacitance (Ciss) (Max) @ Vds | - |
| Resistance - RDS(On) | 25 Ohms |
| Power - Max | 250 mW |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23 (TO-236AB) |
Submit your RFQ for BSR56,215 and get a quote within 24 hours.
