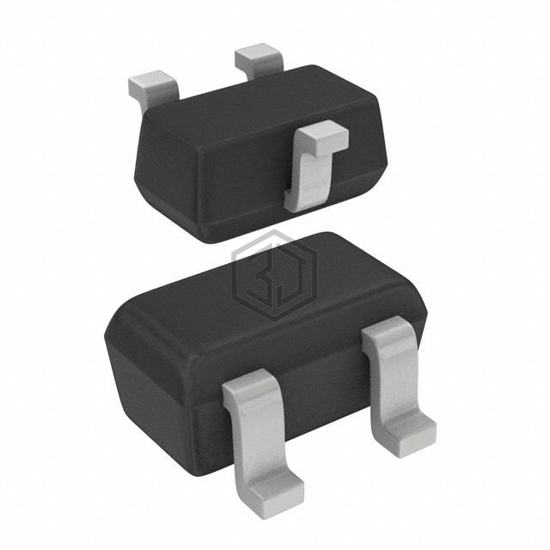

BAW56T,115
DIODE ARRAY GP 90V 150MA SC75
BAW56T,115 is a Diodes - Rectifiers - Arrays manufactured by NXP USA Inc.. DIODE ARRAY GP 90V 150MA SC75. Key specifications: mounting type Surface Mount, package / case SC-75, SOT-416.
In Stock: 78,000
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Diode Configuration | 1 Pair Common Anode |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 90 V |
| Current - Average Rectified (Io) (per Diode) | 150mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns |
| Current - Reverse Leakage @ Vr | 500 nA @ 80 V |
| Operating Temperature - Junction | 150°C (Max) |
| Mounting Type | Surface Mount |
| Package / Case | SC-75, SOT-416 |
| Supplier Device Package | SC-75 |
Frequently Asked Questions
BAW56T,115 is a Diodes - Rectifiers - Arrays manufactured by NXP USA Inc.. DIODE ARRAY GP 90V 150MA SC75
The mounting type of BAW56T,115 is Surface Mount.
The package type of BAW56T,115 is SC-75, SOT-416.
Yes, BAW56T,115 is listed as Obsolete. Consider requesting a quote for alternative parts.
