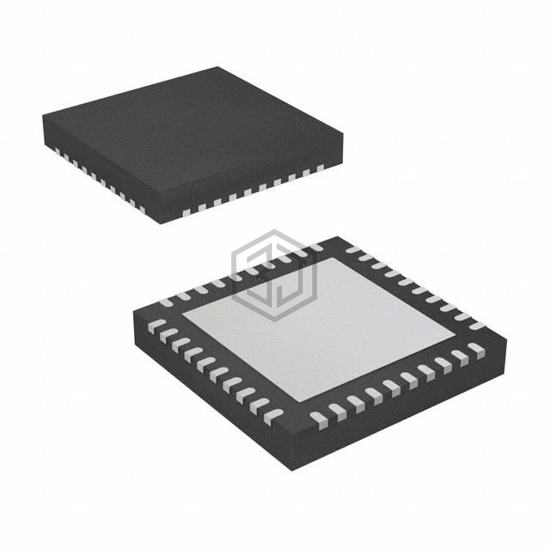

IC ADC 11BIT PIPELINED 40HVQFN
ADC1115S125HN/C1:5 is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by NXP USA Inc.. IC ADC 11BIT PIPELINED 40HVQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 1.65V ~ 3.6V, package / case 40-VFQFN Exposed Pad.
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 11 |
| Sampling Rate (Per Second) | 125M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | LVDS - Parallel, Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.85V ~ 3.4V, 5V |
| Voltage - Supply, Digital | 1.65V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 40-VFQFN Exposed Pad |
| Supplier Device Package | 40-HVQFN (6x6) |
| Mounting Type | Surface Mount |
ADC1115S125HN/C1:5 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADC10040CIMTX/NOPB | National Semiconductor | IC ADC 10BIT PIPELINED 28TSSOP | 93% | View |
| LTC2260IUJ-14#PBF | Analog Devices Inc. | IC ADC 14BIT PIPELINED 40QFN | 90% | View |
| LTC2246IUH#TRPBF | Analog Devices Inc. | IC ADC 14BIT PIPELINED 32QFN | 90% | View |
| LTC2311IMSE-12#WPBF | Analog Devices Inc. | 12-B + SIGN, 5MSPS DIFF IN ADC W | 90% | View |
| AD9460BSVZ-105 | Analog Devices Inc. | IC ADC 16BIT PIPELINED 100TQFP | 86% | View |
| LTC2310IMSE-16#TRPBF | Analog Devices Inc. | IC ADC 16BIT SAR 16MSOP | 86% | View |
Submit your RFQ for ADC1115S125HN/C1:5 and get a quote within 24 hours.
