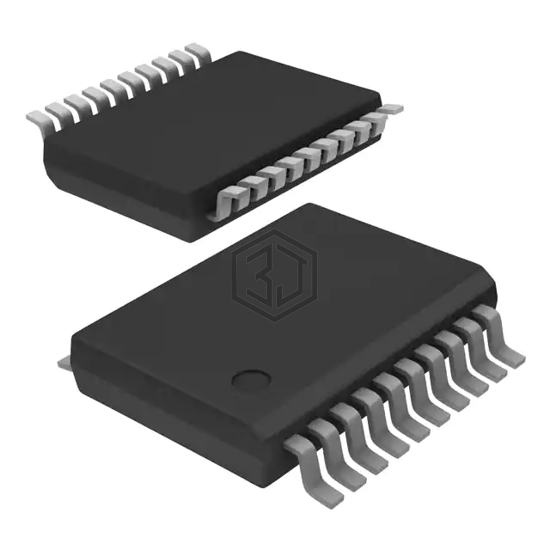

IC FF D-TYPE SNGL 8BIT 20SSOP
74LVT534DB,112 is a Logic - Flip Flops manufactured by NXP USA Inc.. IC FF D-TYPE SNGL 8BIT 20SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 2.7V ~ 3.6V, package / case 20-SSOP (0.209", 5.30mm Width).
In Stock: 924
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Standard |
| Type | D-Type |
| Output Type | Tri-State, Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Clock Frequency | 150 MHz |
| Max Propagation Delay @ V, Max CL | 4.9ns @ 3.3V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 32mA, 64mA |
| Voltage - Supply | 2.7V ~ 3.6V |
| Current - Quiescent (Iq) | 190 µA |
| Input Capacitance | 4 pF |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-SSOP |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) |
74LVT534DB,112 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74AC534DWR | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20SOIC | 75% | View |
| SN74AC534DW | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20SOIC | 75% | View |
| SN74AC534DBR | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20SSOP | 75% | View |
| SN74AC534PW | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20TSSOP | 75% | View |
| SN74AC534NSR | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20SO | 75% | View |
| 74VHCT574MTC | Fairchild Semiconductor | BUS DRIVER, AHCT/VHCT SERIES | 63% | View |
Submit your RFQ for 74LVT534DB,112 and get a quote within 24 hours.
