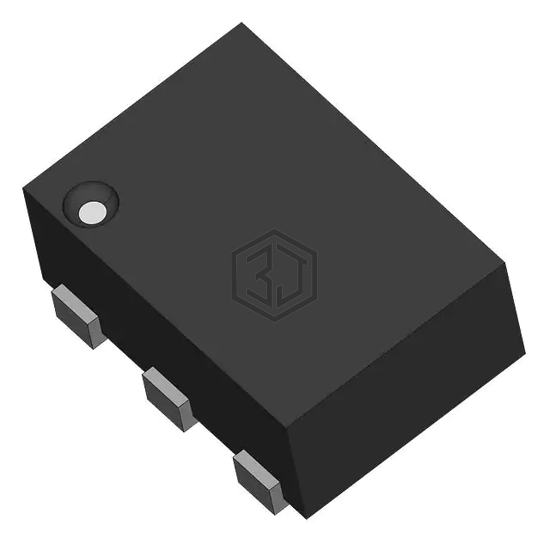

NOW NEXPERIA 74LVC1G66GS - BUS D
74LVC1G66GS,132 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by NXP USA Inc.. NOW NEXPERIA 74LVC1G66GS - BUS D. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 6-XFDFN, number of circuits 1.
In Stock: 1,311,689
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 10Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 4.2ns, 5ns |
| -3db Bandwidth | 500MHz |
| Charge Injection | 7.5pC |
| Channel Capacitance (CS(off), CD(off)) | 6.5pF |
| Current - Leakage (IS(off)) (Max) | 5µA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-XFDFN |
| Supplier Device Package | 6-XSON, SOT1202 (1x1) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74LVC1G66GW,125 | Nexperia USA Inc. | IC SWITCH SPST 5TSSOP | 100% | View |
| 74LVC1G66GW-Q100,1 | Nexperia USA Inc. | IC BILATERAL SWITCH LP/LV 5TSSOP | 100% | View |
| 74LVC1G66GW,165 | NXP USA Inc. | BUS DRIVER, LVC/LCX/Z SERIES, 1 | 100% | View |
| 74LVC1G66GM,132 | Nexperia USA Inc. | IC SWITCH SPST 6XSON | 100% | View |
| 74LVC1G66GM,115 | Nexperia USA Inc. | IC SWITCH SPST 6XSON | 100% | View |
| 74LVC1G384GW-Q100H | Nexperia USA Inc. | IC BILATERAL SWITCH 5TSSOP | 98% | View |
Submit your RFQ for 74LVC1G66GS,132 and get a quote within 24 hours.
