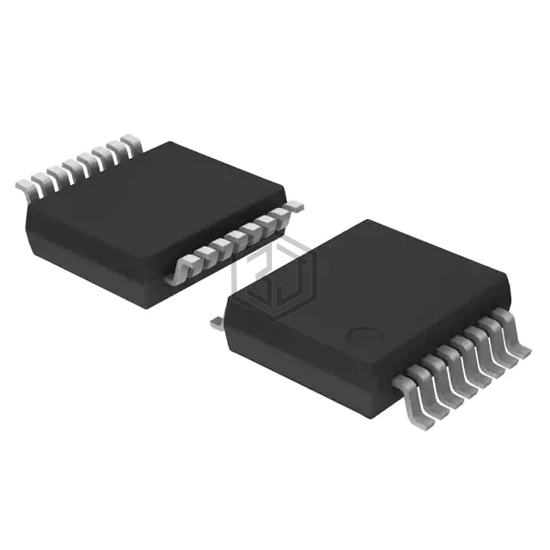

IC FF JK TYPE DUAL 1BIT 16SSOP
74LVC109DB,112 is a Logic - Flip Flops manufactured by NXP USA Inc.. IC FF JK TYPE DUAL 1BIT 16SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 1.65V ~ 3.6V, package / case 16-SSOP (0.209", 5.30mm Width).
In Stock: 8,960
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Set(Preset) and Reset |
| Type | JK Type |
| Output Type | Complementary |
| Number of Elements | 2 |
| Number of Bits per Element | 1 |
| Clock Frequency | 330 MHz |
| Max Propagation Delay @ V, Max CL | 6.8ns @ 3.3V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 1.65V ~ 3.6V |
| Current - Quiescent (Iq) | 10 µA |
| Input Capacitance | 5 pF |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-SSOP |
| Package / Case | 16-SSOP (0.209", 5.30mm Width) |
74LVC109DB,112 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74LVC109D,112 | NXP USA Inc. | IC FF JK TYPE DUAL 1BIT 16SO | 100% | View |
| 74LVC109DB,118 | NXP USA Inc. | IC FF JK TYPE DUAL 1BIT 16SSOP | 100% | View |
| 74LVC109PW,118 | NXP USA Inc. | IC FF JK TYPE DUAL 1BIT 16TSSOP | 100% | View |
| 74LVC109PW,112 | NXP USA Inc. | IC FF JK TYPE DUAL 1BIT 16TSSOP | 100% | View |
| 74LVC109D,118 | NXP USA Inc. | IC FF JK TYPE DUAL 1BIT 16SO | 100% | View |
Submit your RFQ for 74LVC109DB,112 and get a quote within 24 hours.
