SPDT, 3 FUNC, 1 CHANNEL, CMOS, P

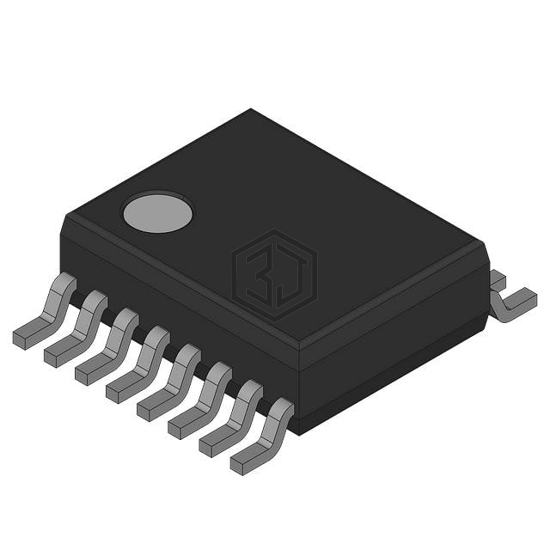

74HCT4053DB,118 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by NXP USA Inc.. SPDT, 3 FUNC, 1 CHANNEL, CMOS, P. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-SSOP (0.209", 5.30mm Width), number of circuits 3.
In Stock: 12,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 3 |
| On-State Resistance (Max) | 120Ohm |
| Channel-to-Channel Matching (ΔRon) | 6Ohm |
| Voltage - Supply, Single (V+) | 4.5V ~ 5.5V |
| Voltage - Supply, Dual (V±) | ±1V ~ 5V |
| Switch Time (Ton, Toff) (Max) | 34ns, 31ns |
| -3db Bandwidth | 170MHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 3.5pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -60dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 16-SSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74HCT4053PW,118 | Nexperia USA Inc. | IC MUX/DEMUX TRIPLE 2X1 16TSSOP | 100% | View |
| 74HCT4053D,118 | Nexperia USA Inc. | IC MUX/DEMUX TRIPLE 2X1 16SOIC | 100% | View |
| 74HCT4053BQ,115 | Nexperia USA Inc. | IC MUX/DEMUX TRIPLE 2X1 16DHVQFN | 100% | View |
| 74HCT4053BQ-Q100,1 | Nexperia USA Inc. | IC MUX/DEMUX TRPL 2CH 16DHVQFN | 100% | View |
| 74HCT4053PW/AUJ | NXP USA Inc. | IC MUX/DEMUX TRIPLE 2X1 16TSSOP | 100% | View |
| HI-8192PSTF | Holt Integrated Circuits Inc. | IC ANALOG SWITCH 4 X SPST 16SOIC | 68% | View |
Submit your RFQ for 74HCT4053DB,118 and get a quote within 24 hours.
