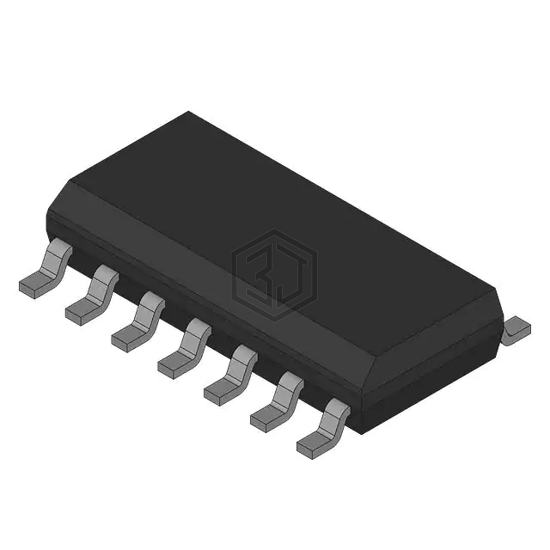

IC GATE NAND SCHMIT 4CH 2IN 14SO
74HCT132D/S400118 is a Logic - Gates and Inverters manufactured by NXP USA Inc.. IC GATE NAND SCHMIT 4CH 2IN 14SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 4.5V ~ 5.5V, package / case 14-SOIC (0.154", 3.90mm Width).
In Stock: 54,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 4mA, 4mA |
| Logic Level - Low | 0.5V ~ 0.6V |
| Logic Level - High | 1.9V ~ 2.1V |
| Max Propagation Delay @ V, Max CL | 33ns @ 4.5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SO |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74HCT132DB,118-NXP | NXP USA Inc. | IC GATE NAND 4CH 2-INP 14SSOP | 100% | View |
| MC74HCT132ADTR2G | onsemi | IC GATE NAND 4CH 2-INP 14TSSOP | 86% | View |
| CD74HCT20M | Texas Instruments | IC GATE NAND 2CH 4-INP 14SOIC | 86% | View |
| 74HCT30D-Q100118 | NXP USA Inc. | IC GATE NAND 1CH 8-INP 14SO | 77% | View |
| MC74HCT20ADTR2G | onsemi | IC GATE NAND 2CH 4-INP 14TSSOP | 74% | View |
| 74HCT00DB118 | Nexperia USA Inc. | IC GATE NAND 4CH 2-INP 14SSOP | 71% | View |
Submit your RFQ for 74HCT132D/S400118 and get a quote within 24 hours.
