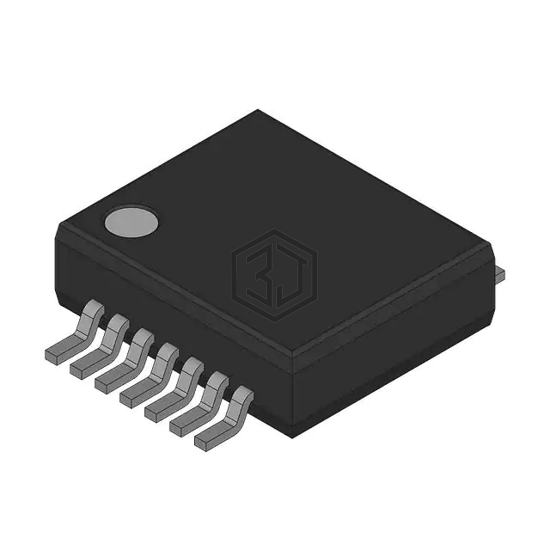

IC GATE NOR 4CH 2-INP 14SSOP
74HCT02DB118 is a Logic - Gates and Inverters manufactured by NXP USA Inc.. IC GATE NOR 4CH 2-INP 14SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 4.5V ~ 5.5V, package / case 14-SSOP (0.209", 5.30mm Width).
In Stock: 9,886
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | NOR Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 4mA, 4mA |
| Logic Level - Low | 0.8V |
| Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 19ns @ 4.5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SSOP |
| Package / Case | 14-SSOP (0.209", 5.30mm Width) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74HCT02BQ-Q100,115 | Nexperia USA Inc. | IC GATE NOR 4CH 2-INP 14DHVQFN | 100% | View |
| 74HCT02D-Q100,118 | Nexperia USA Inc. | IC GATE NOR 4CH 2-INP 14SO | 100% | View |
| 74HCT27BQ,115 | Nexperia USA Inc. | IC GATE NOR 3CH 3-INP 14DHVQFN | 94% | View |
| 74HCT4002D,112 | NXP USA Inc. | IC GATE NOR 2CH 4-INP 14SO | 89% | View |
| 74HCT2G02DC-Q100H | Nexperia USA Inc. | IC GATE NOR 2CH 2-INP 8VSSOP | 79% | View |
| 74AUP2G02GF115 | NXP Semiconductors | IC GATE NOR 2CH 2-INP 8XSON | 58% | View |
Submit your RFQ for 74HCT02DB118 and get a quote within 24 hours.
