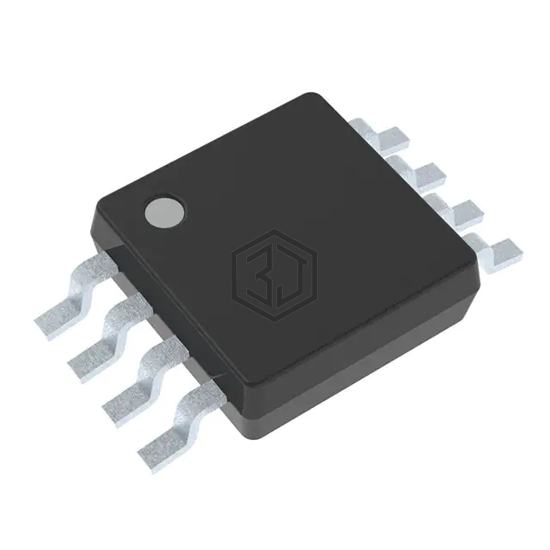

IC INVERT SCHMITT 3CH 3IN 8TSSOP
74HC3G14DP/S470125 is a Logic - Gates and Inverters manufactured by NXP USA Inc.. IC INVERT SCHMITT 3CH 3IN 8TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2V ~ 6V, package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width).
In Stock: 2,984
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 3 |
| Number of Inputs | 3 |
| Features | Schmitt Trigger |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Logic Level - Low | 0.3V ~ 1.2V |
| Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 21ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-TSSOP |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74HC3G14GD,125-NXP | NXP USA Inc. | IC INVERT SCHMITT 3CH 3-IN 8XSON | 100% | View |
| 74HC2G14GW-Q100H | Nexperia USA Inc. | IC INVERT SCHMITT 2CH 2IN 6TSSOP | 95% | View |
| 74HC14D/AUJ | NXP USA Inc. | IC INVERT SCHMITT 6CH 1-INP 14SO | 85% | View |
| 74HC04PW-Q100,118 | Nexperia USA Inc. | IC INVERTER 6CH 1-INP 14TSSOP | 75% | View |
| 74HC04PW/AU118 | NXP USA Inc. | IC INVERTER 6CH 1-INP 14TSSOP | 75% | View |
| 74HCU04S14-13 | Diodes Incorporated | IC INVERTER 6CH 1-INP 14SO | 69% | View |
Submit your RFQ for 74HC3G14DP/S470125 and get a quote within 24 hours.
