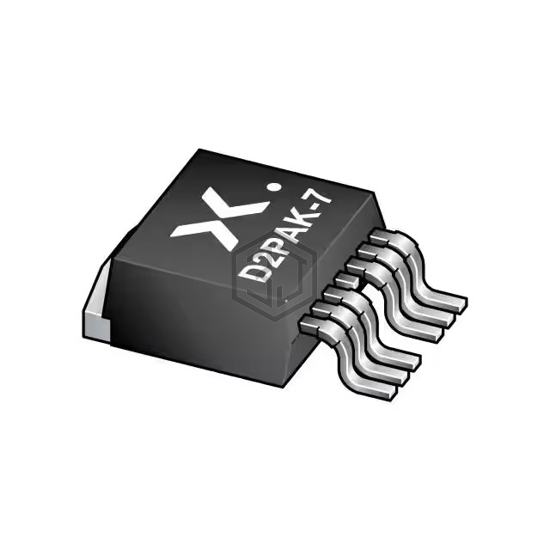

NEXPERIA BUK7C10-75 - 75A, 75V,
BUK7C10-75AITE,118 is a Transistors - FETs, MOSFETs - Single manufactured by NXP Semiconductors. NEXPERIA BUK7C10-75 - 75A, 75V,. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-7, D²Pak (6 Leads + Tab).
In Stock: 5,341
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 75 V |
| Current - Continuous Drain (Id) @ 25°C | 75A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 10mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 121 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4700 pF @ 25 V |
| FET Feature | Current Sensing |
| Power Dissipation (Max) | 272W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | D2PAK-7 |
| Package / Case | TO-263-7, D²Pak (6 Leads + Tab) |
Submit your RFQ for BUK7C10-75AITE,118 and get a quote within 24 hours.
