NEXPERIA BUK6C2R1-55C - 228A, 55

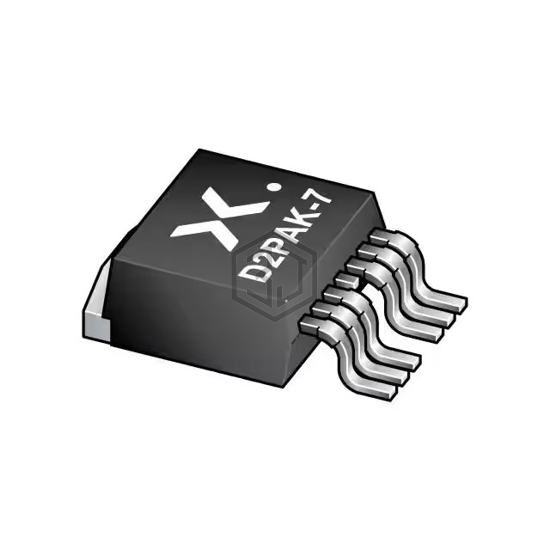

BUK6C2R1-55C,118 is a Transistors - FETs, MOSFETs - Single manufactured by NXP Semiconductors. NEXPERIA BUK6C2R1-55C - 228A, 55. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-7, D²Pak (6 Leads + Tab).
In Stock: 538
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 55 V |
| Current - Continuous Drain (Id) @ 25°C | 228A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 2.3mOhm @ 90A, 10V |
| Vgs(th) (Max) @ Id | 2.8V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 253 nC @ 10 V |
| Vgs (Max) | ±16V |
| Input Capacitance (Ciss) (Max) @ Vds | 16000 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 300W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | D2PAK-7 |
| Package / Case | TO-263-7, D²Pak (6 Leads + Tab) |
Submit your RFQ for BUK6C2R1-55C,118 and get a quote within 24 hours.
