SENSOR ROTARY 360DEG SOLDER PAD

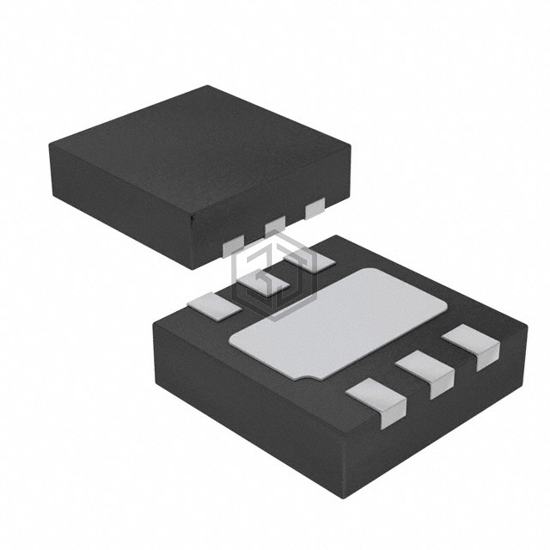

ADT002-10E is a Position Sensors - Angle, Linear Position Measuring manufactured by NVE Corp/Sensor Products. SENSOR ROTARY 360DEG SOLDER PAD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2.45V ~ 5.5V, package / case 6-WDFN Exposed Pad.
In Stock: 100
| Attribute | Value |
|---|---|
| Product Status | Active |
| For Measuring | Rotary Position |
| Technology | Magnetoresistive |
| Rotation Angle - Electrical, Mechanical | 0° ~ 360°, Continuous |
| Linear Range | - |
| Output | Digital |
| Output Signal | Logic |
| Actuator Type | External Magnet, Included |
| Linearity | ±3° |
| Resistance | - |
| Resistance Tolerance | - |
| Voltage - Supply | 2.45V ~ 5.5V |
| Mounting Type | Surface Mount |
| Termination Style | SMD (SMT) Tab |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-TDFN (2.5x2.5) |
Submit your RFQ for ADT002-10E and get a quote within 24 hours.
