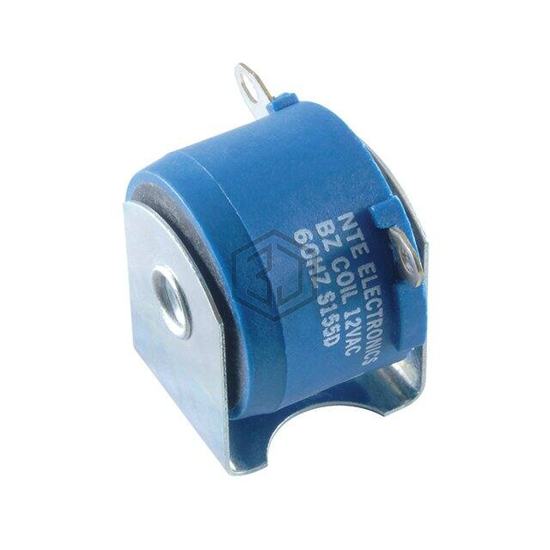

BUZZER 12V 32.51X26.92MM PNL MNT
RB-12 is a Alarms, Buzzers, and Sirens manufactured by NTE Electronics, Inc. BUZZER 12V 32.51X26.92MM PNL MNT. Key specifications: mounting type Panel Mount, operating temperature -45°C ~ 110°C, voltage - rated 12 V, size / dimension 1.280" L x 1.060" W (32.51mm x 26.92mm).
In Stock: 207
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | AC |
| Voltage - Rated | 12 V |
| Voltage Range | - |
| Frequency | - |
| Technology | - |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 93dB @ 12V, 15cm |
| Current - Supply | - |
| Port Location | Top |
| Operating Temperature | -45°C ~ 110°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount |
| Termination | Screw Terminal, Quick Connect Tab - 0.187" (4.75mm) |
| Size / Dimension | 1.280" L x 1.060" W (32.51mm x 26.92mm) |
| Height - Seated (Max) | 0.880" (22.35mm) |
