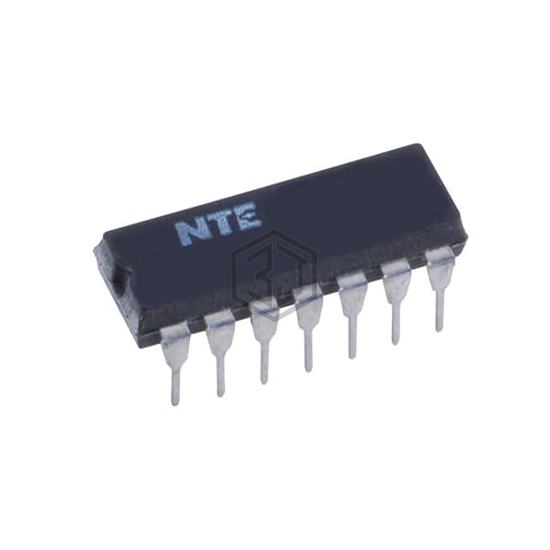

IC-TTL AND GATE 14-LEAD DIP
NTE74LS08 is a Logic - Gates and Inverters manufactured by NTE Electronics, Inc. IC-TTL AND GATE 14-LEAD DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, voltage - supply 4.75V ~ 5.25V, package / case 14-DIP (0.300", 7.62mm).
In Stock: 287
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | AND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Quiescent (Max) | 8.8 mA |
| Current - Output High, Low | 400µA, 8mA |
| Logic Level - Low | 0.8V |
| Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 20ns @ 5V, 15pF |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-PDIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74LS08N | Texas Instruments | IC GATE AND 4CH 2-INP 14DIP | 100% | View |
| SN74ALS08N | Texas Instruments | IC GATE AND 4CH 2-INP 14DIP | 93% | View |
| SN74LS11N | Texas Instruments | IC GATE AND 3CH 3-INP 14DIP | 90% | View |
| SN74LS21N | Texas Instruments | IC GATE AND 2CH 4-INP 14DIP | 90% | View |
| SN74ALS11AN | Texas Instruments | IC GATE AND 3CH 3-INP 14DIP | 87% | View |
| SN74ALS21AN | Texas Instruments | IC GATE AND 2CH 4-INP 14DIP | 85% | View |
Submit your RFQ for NTE74LS08 and get a quote within 24 hours.
