IC INVERT SCHMITT 6CH 1-IN 14DIP

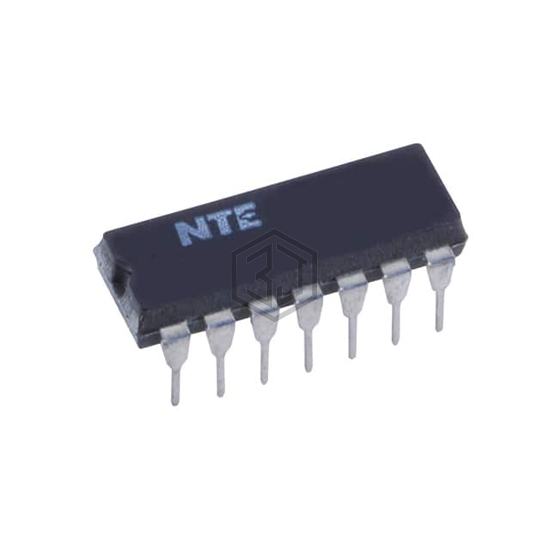

NTE74HC14 is a Logic - Gates and Inverters manufactured by NTE Electronics, Inc. IC INVERT SCHMITT 6CH 1-IN 14DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), voltage - supply 2V ~ 6V, package / case 14-DIP (0.300", 7.62mm).
In Stock: 15
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 6 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 40 µA |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Logic Level - Low | 0.3V ~ 1.2V |
| Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 19ns @ 6V, 50pF |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-DIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MM74HC14J | National Semiconductor | IC INVERT SCHMITT 6CH 1-IN 14DIP | 88% | View |
| MM74HC14N | onsemi | IC INVERT SCHMITT 6CH 1-IN 14DIP | 88% | View |
| M74HC04B1R | STMicroelectronics | IC INVERTER 6CH 1-INP 14DIP | 84% | View |
| MC74HC14ANG | onsemi | IC INVERT SCHMITT 6CH 1-IN 14DIP | 84% | View |
| JM38510/65702BCA | Texas Instruments | IC INV SCHMITT 6CH 1-IN 14CDIP | 81% | View |
| CD4049UBE | Texas Instruments | IC INVERTER 6CH 1-INP 16DIP | 56% | View |
Submit your RFQ for NTE74HC14 and get a quote within 24 hours.
