IC FF JK TYPE DUAL 1BIT 16DIP

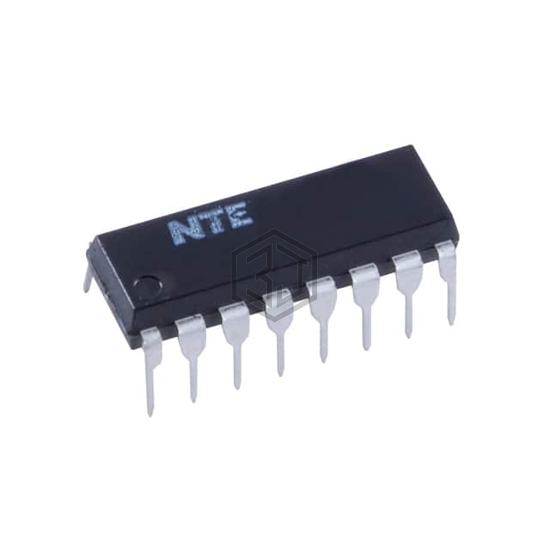

NTE74HC109 is a Logic - Flip Flops manufactured by NTE Electronics, Inc. IC FF JK TYPE DUAL 1BIT 16DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (TA), voltage - supply 2V ~ 6V, package / case 16-DIP (0.260", 6.6mm).
In Stock: 97
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Set(Preset) and Reset |
| Type | JK Type |
| Output Type | Complementary |
| Number of Elements | 2 |
| Number of Bits per Element | 1 |
| Clock Frequency | 60 MHz |
| Max Propagation Delay @ V, Max CL | 30ns @ 6V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Iq) | 4 µA |
| Input Capacitance | 10 pF |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 16-DIP |
| Package / Case | 16-DIP (0.260", 6.6mm) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CD74HC109E | Texas Instruments | IC FF JK TYPE DUAL 1BIT 16DIP | 100% | View |
| MC74HC109N | onsemi | IC FF JK TYPE DUAL 1BIT 16DIP | 100% | View |
| CD54HC109F3A | Harris Corporation | J-K FLIP-FLOP | 100% | View |
| CD74HC109EX | Harris Corporation | IC FF JK TYPE DUAL 1BIT 16DIP | 100% | View |
| SN74HC109N | Texas Instruments | IC FF JK TYPE DUAL 1BIT 16DIP | 94% | View |
| JM38510/65305BEA | Texas Instruments | IC FF JK TYPE DUAL 1BIT 16CDIP | 89% | View |
Submit your RFQ for NTE74HC109 and get a quote within 24 hours.
