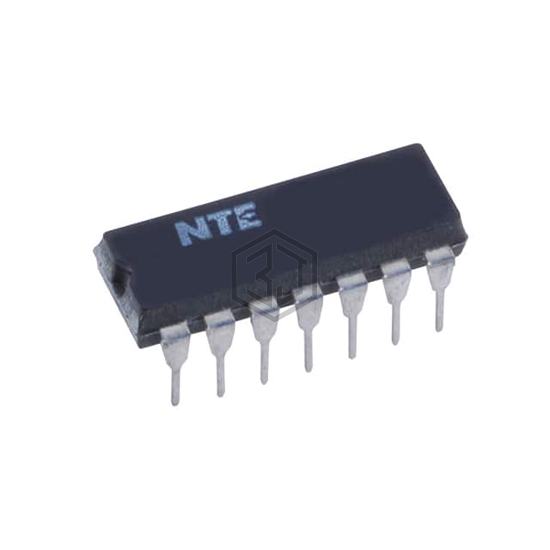

IC-TTL NAND GATE 14-LEAD DIP
NTE7430 is a Logic - Gates and Inverters manufactured by NTE Electronics, Inc. IC-TTL NAND GATE 14-LEAD DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, voltage - supply 4.75V ~ 5.25V, package / case 14-DIP (0.300", 7.62mm).
In Stock: 8,132
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | NAND Gate |
| Number of Circuits | 1 |
| Number of Inputs | 8 |
| Features | - |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Quiescent (Max) | 6 mA |
| Current - Output High, Low | 400µA, 16mA |
| Logic Level - Low | 0.8V |
| Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 22ns @ 5V, 15pF |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-PDIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74LS30NE4 | Texas Instruments | IC GATE NAND 1CH 8-INP 14DIP | 86% | View |
| SN74ALS20AN | Texas Instruments | IC GATE NAND 2CH 4-INP 14DIP | 80% | View |
| SN74LS10N | Texas Instruments | IC GATE NAND 3CH 3-INP 14DIP | 79% | View |
| SN74LS00N | Texas Instruments | IC GATE NAND 4CH 2-INP 14DIP | 74% | View |
| SN74ALS10AN | Texas Instruments | IC GATE NAND 3CH 3-INP 14DIP | 73% | View |
| SN74ALS00AN | Texas Instruments | IC GATE NAND 4CH 2-INP 14DIP | 69% | View |
Submit your RFQ for NTE7430 and get a quote within 24 hours.
