IC-TTL DUAL NAND TRIG 14-LEAD

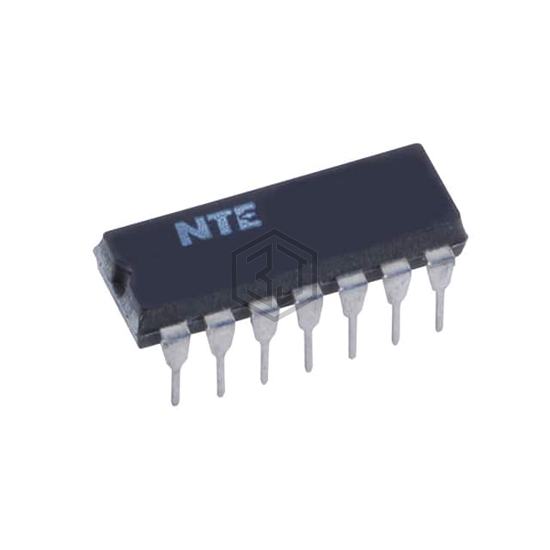

NTE7413 is a Logic - Gates and Inverters manufactured by NTE Electronics, Inc. IC-TTL DUAL NAND TRIG 14-LEAD. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, voltage - supply 4.75V ~ 5.25V, package / case 14-DIP (0.300", 7.62mm).
In Stock: 7,609
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | NAND Gate |
| Number of Circuits | 2 |
| Number of Inputs | 4 |
| Features | Schmitt Trigger |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Quiescent (Max) | 32 mA |
| Current - Output High, Low | 800µA, 16mA |
| Logic Level - Low | 0.6V ~ 1.1V |
| Logic Level - High | 1.5V ~ 2V |
| Max Propagation Delay @ V, Max CL | 27ns @ 5V, 15pF |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-PDIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
