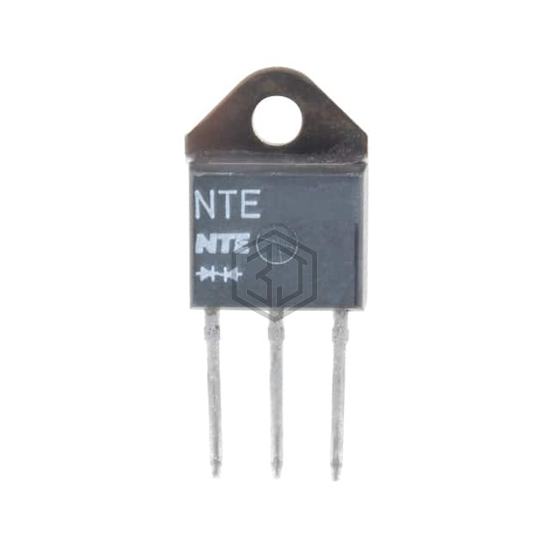

NTE5540
SCR 800V 55A TO218
NTE5540 is a Thyristors - SCRs manufactured by NTE Electronics, Inc. SCR 800V 55A TO218. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TJ), package / case TO-218-3.
In Stock: 36
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Off State | 800 V |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Current - Gate Trigger (Igt) (Max) | 40 mA |
| Voltage - On State (Vtm) (Max) | 1.8 V |
| Current - On State (It (AV)) (Max) | 35 A |
| Current - On State (It (RMS)) (Max) | 55 A |
| Current - Hold (Ih) (Max) | 60 mA |
| Current - Off State (Max) | 20 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 550A, 650A |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-218-3 |
| Supplier Device Package | TO-218 |
Frequently Asked Questions
NTE5540 is a Thyristors - SCRs manufactured by NTE Electronics, Inc. SCR 800V 55A TO218
The mounting type of NTE5540 is Through Hole.
The operating temperature range of NTE5540 is -40°C ~ 125°C (TJ).
The package type of NTE5540 is TO-218-3.
