3J LIMITED

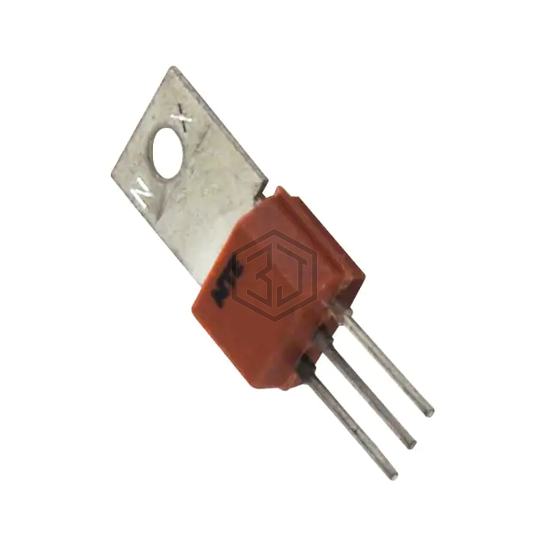

NTE5457
SCR 400V 4A TO202
NTE5457 is a Thyristors - SCRs manufactured by NTE Electronics, Inc. SCR 400V 4A TO202. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, package / case TO-202 Long Tab.
In Stock: 684
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Off State | 400 V |
| Voltage - Gate Trigger (Vgt) (Max) | 800 mV |
| Current - Gate Trigger (Igt) (Max) | 200 µA |
| Voltage - On State (Vtm) (Max) | 2.2 V |
| Current - On State (It (AV)) (Max) | - |
| Current - On State (It (RMS)) (Max) | 4 A |
| Current - Hold (Ih) (Max) | 3 mA |
| Current - Off State (Max) | 100 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 20A @ 60Hz |
| SCR Type | Sensitive Gate |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | TO-202 Long Tab |
| Supplier Device Package | TO-202 |
Frequently Asked Questions
NTE5457 is a Thyristors - SCRs manufactured by NTE Electronics, Inc. SCR 400V 4A TO202
The mounting type of NTE5457 is Through Hole.
The operating temperature range of NTE5457 is -40°C ~ 100°C.
The package type of NTE5457 is TO-202 Long Tab.
