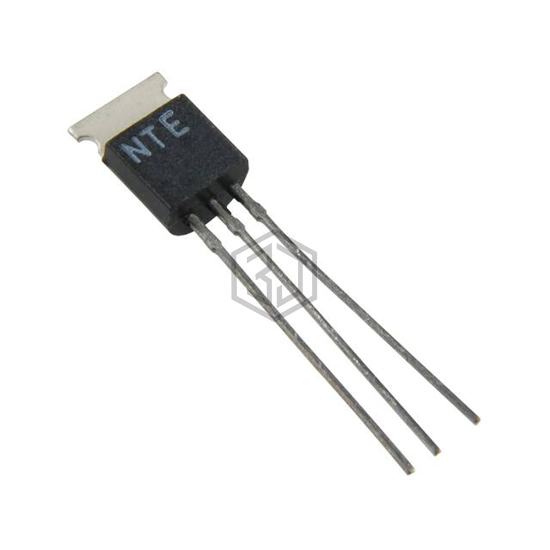

MOSFET N-CHANNEL 60V 310MA TO237
NTE491T is a Transistors - FETs, MOSFETs - Single manufactured by NTE Electronics, Inc. MOSFET N-CHANNEL 60V 310MA TO237. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-237AA.
In Stock: 620
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 310mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V |
| Rds On (Max) @ Id, Vgs | 5Ohm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | +15V, -300mV |
| Input Capacitance (Ciss) (Max) @ Vds | 60 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 1W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-237 |
| Package / Case | TO-237AA |
