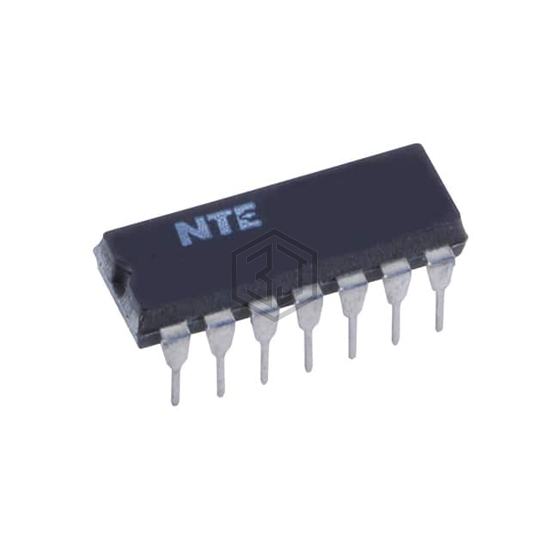

IC INVERT SCHMITT 6CH 1-IN 14DIP
NTE4584B is a Logic - Gates and Inverters manufactured by NTE Electronics, Inc. IC INVERT SCHMITT 6CH 1-IN 14DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - supply 3V ~ 18V, package / case 14-DIP (0.300", 7.62mm).
In Stock: 571
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 6 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 3V ~ 18V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 8.8mA, 8.8mA |
| Logic Level - Low | 1.6V ~ 4.6V |
| Logic Level - High | 3.4V ~ 10.5V |
| Max Propagation Delay @ V, Max CL | 80ns @ 15V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-DIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MC14584BCPG | onsemi | IC INVERT SCHMITT 6CH 1-IN 14DIP | 100% | View |
| MC14584BCP | onsemi | IC INVERT SCHMITT 6CH 1INP 14DIP | 100% | View |
| MC14106BCPG | onsemi | IC INVERT SCHMITT 6CH 1-IN 14DIP | 96% | View |
| MM74C04N | Fairchild Semiconductor | IC INVERTER 6CH 1-INP 14DIP | 93% | View |
| MC14049BCP | onsemi | IC INVERTER HEX 6CH 1-INP 16DIP | 85% | View |
| NTE4069 | NTE Electronics, Inc | IC INVERTER 6CH 1-INP 14DIP | 80% | View |
