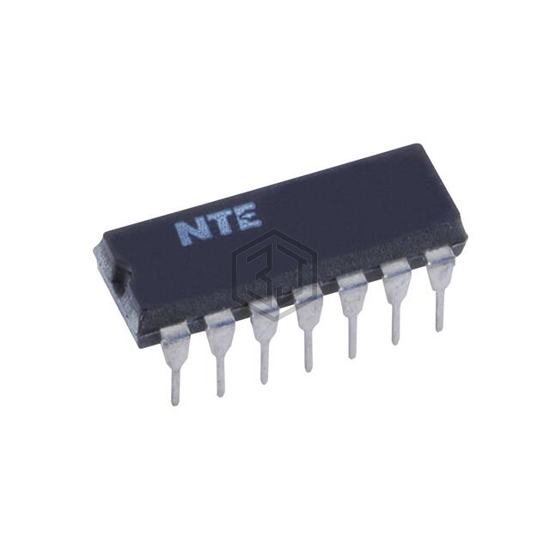

IC GATE XNOR 4CH 2-INP 14DIP
NTE4077B is a Logic - Gates and Inverters manufactured by NTE Electronics, Inc. IC GATE XNOR 4CH 2-INP 14DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - supply 3V ~ 18V, package / case 14-DIP (0.300", 7.62mm).
In Stock: 128
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | XNOR (Exclusive NOR) |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 3V ~ 18V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 8.8mA, 8.8mA |
| Logic Level - Low | 1.5V ~ 4V |
| Logic Level - High | 3.5V ~ 11V |
| Max Propagation Delay @ V, Max CL | 110ns @ 15V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-DIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MC14077BCPG | onsemi | IC GATE XNOR 4CH 2-INP 14DIP | 100% | View |
| MC14077BCP | onsemi | IC GATE XNOR 4CH 2-INP 14DIP | 100% | View |
| CD4077BE | Harris Corporation | IC GATE XNOR 4CH 2-INP 14DIP | 86% | View |
| CD4077BEX | Harris Corporation | CMOS QUAD 2-INPUT XNOR GATE | 85% | View |
| CD54HC7266F3A | Harris Corporation | XNOR GATE, HC/UH SERIES | 54% | View |
| MM74HCT04J | National Semiconductor | IC GATE XNOR 4CH 2-INP 14DIP | 54% | View |
Submit your RFQ for NTE4077B and get a quote within 24 hours.
