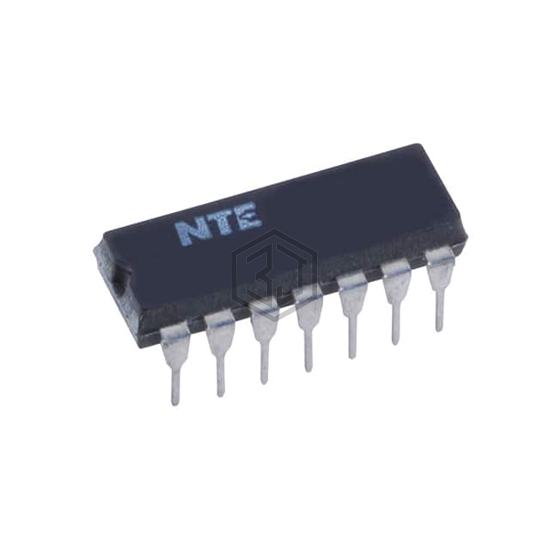

IC-CMOS HV QUAD EX/OR GATE DIP
NTE4070B is a Logic - Gates and Inverters manufactured by NTE Electronics, Inc. IC-CMOS HV QUAD EX/OR GATE DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - supply 3V ~ 18V, package / case 14-DIP (0.300", 7.62mm).
In Stock: 97
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | XOR (Exclusive OR) |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 3V ~ 18V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 8.8mA, 8.8mA |
| Logic Level - Low | 1.5V ~ 4V |
| Logic Level - High | 2.75V ~ 8.25V |
| Max Propagation Delay @ V, Max CL | 100ns @ 15V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-DIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MC14070BCPG | onsemi | IC GATE XOR 4CH 2-INP 14DIP | 97% | View |
| CD4030BD | Harris Corporation | XOR LOGIC GATES | 85% | View |
| JM38510/05353BCA | Harris Corporation | CMOS LOGIC IC | 85% | View |
| CD4070BD3 | Harris Corporation | CMOS QUAD 2-INPUT XOR GATE | 85% | View |
| CD4030BF | Harris Corporation | XOR LOGIC GATES | 85% | View |
| CD4070BD | Harris Corporation | CMOS QUAD 2-INPUT XOR GATE | 85% | View |
Submit your RFQ for NTE4070B and get a quote within 24 hours.
