IC FF D-TYPE DUAL 14BIT 14DIP

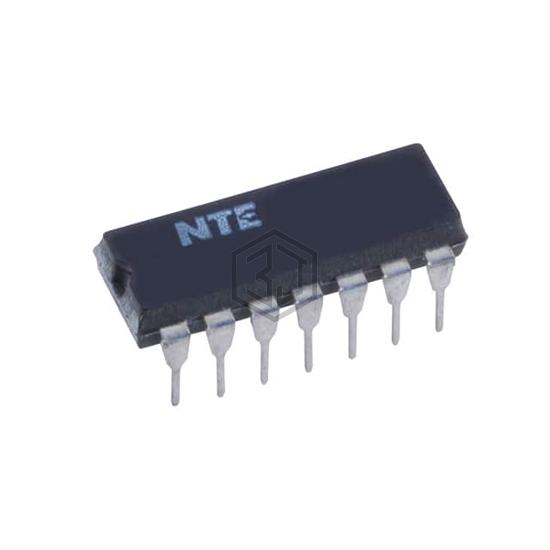

NTE4013B is a Logic - Flip Flops manufactured by NTE Electronics, Inc. IC FF D-TYPE DUAL 14BIT 14DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (TA), voltage - supply 3V ~ 15V, package / case 14-DIP (0.300", 7.62mm).
In Stock: 526
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Set(Preset) and Reset |
| Type | D-Type |
| Output Type | Complementary |
| Number of Elements | 2 |
| Number of Bits per Element | 14 |
| Clock Frequency | 15.5 MHz |
| Max Propagation Delay @ V, Max CL | 120ns @ 15V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 8.8mA, 8.8mA |
| Voltage - Supply | 3V ~ 15V |
| Current - Quiescent (Iq) | 16 µA |
| Input Capacitance | 5 pF |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-PDIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CD4013BCN | onsemi | IC FF D-TYPE DUAL 1BIT 14DIP | 84% | View |
| MC14013BCPG | onsemi | IC FF D-TYPE DUAL 1BIT 14DIP | 79% | View |
| CD4013AF/3 | Harris Corporation | CMOS DUAL D-TYPE FLIP-FLOP | 76% | View |
| CD4013BF3A | Texas Instruments | IC FF D-TYPE DOUBLE 1BIT 14CDIP | 75% | View |
| CD4013BE | Texas Instruments | IC FF D-TYPE DUAL 1BIT 14DIP | 68% | View |
| NTE74C74 | NTE Electronics, Inc | IC FF D-TYPE DUAL 1BIT 14DIP | 63% | View |
Submit your RFQ for NTE4013B and get a quote within 24 hours.
