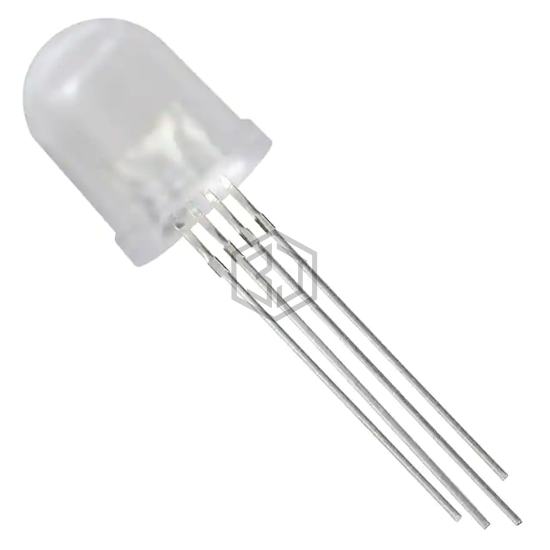

LED 10MM RGB COMMON ANODE
NTE30158 is a LED Indication - Discrete manufactured by NTE Electronics, Inc. LED 10MM RGB COMMON ANODE. Key specifications: mounting type Through Hole, voltage - forward (vf) (typ) 2V Red, 3.2V Green, 3.2V Blue, package / case Radial, color Red, Green, Blue (RGB).
In Stock: 614
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 4000mcd Red, 7000mcd Green, 2500mcd Blue |
| Lens Style | Round with Domed Top |
| Lens Size | 10.00mm Dia |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3.2V Green, 3.2V Blue |
| Current - Test | 20mA |
| Viewing Angle | 60° |
| Mounting Type | Through Hole |
| Wavelength - Dominant | - |
| Wavelength - Peak | 625nm Red, 525nm Green, 465nm Blue |
| Features | - |
| Package / Case | Radial |
| Supplier Device Package | 10mm |
| Size / Dimension | 10.00mm Dia |
| Height (Max) | 13.65mm |
