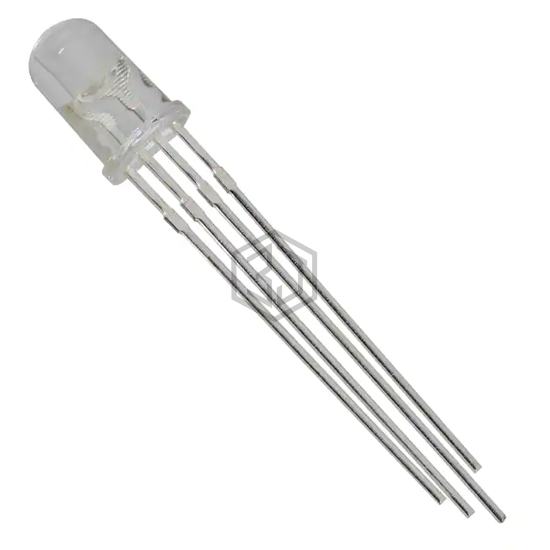

LED 5MM RGB COMMON CATH
NTE30156 is a LED Indication - Discrete manufactured by NTE Electronics, Inc. LED 5MM RGB COMMON CATH. Key specifications: mounting type Through Hole, voltage - forward (vf) (typ) 2V Red, 3.2V Green, 3.2V Blue, package / case Radial, color Red, Green, Blue (RGB).
In Stock: 3,202
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Cathode |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 2500mcd Red, 5000mcd Green, 2000mcd Blue |
| Lens Style | Round with Domed Top |
| Lens Size | 5.00mm Dia |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3.2V Green, 3.2V Blue |
| Current - Test | 20mA |
| Viewing Angle | 60° |
| Mounting Type | Through Hole |
| Wavelength - Dominant | - |
| Wavelength - Peak | 625nm Red, 525nm Green, 465nm Blue |
| Features | - |
| Package / Case | Radial |
| Supplier Device Package | 5mm |
| Size / Dimension | 5.00mm Dia |
| Height (Max) | 8.70mm |
Submit your RFQ for NTE30156 and get a quote within 24 hours.
