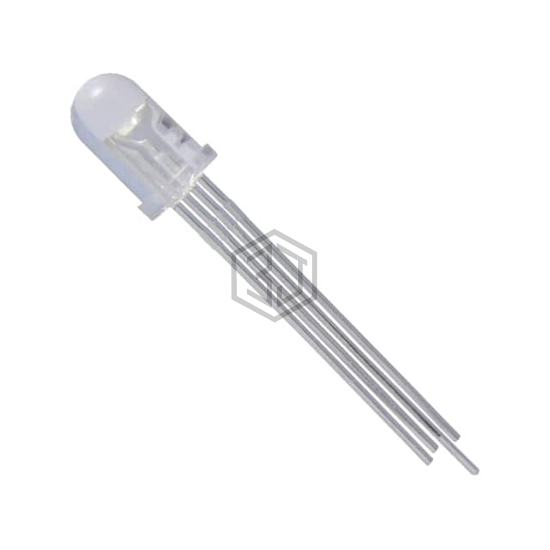

LED-RED/GREEN/BLUE 5MM
NTE30115 is a LED Indication - Discrete manufactured by NTE Electronics, Inc. LED-RED/GREEN/BLUE 5MM. Key specifications: mounting type Through Hole, voltage - forward (vf) (typ) 2.2V Red, 3.2V Green, 3.2V Yellow, package / case Radial - 4 Leads, color Red, Green, Blue (RGB).
In Stock: 2,496
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Cathode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 4000mcd Red, 6000mcd Green, 4000mcd Blue |
| Lens Style | Round with Domed Top |
| Lens Size | 5.00mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.2V Red, 3.2V Green, 3.2V Yellow |
| Current - Test | 20mA |
| Viewing Angle | 30° |
| Mounting Type | Through Hole |
| Wavelength - Dominant | 625nm Red, 520nm Green, 460nm Blue |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | Radial - 4 Leads |
| Supplier Device Package | 5mm |
| Size / Dimension | 5.00mm Dia |
| Height (Max) | 8.70mm |
Submit your RFQ for NTE30115 and get a quote within 24 hours.
