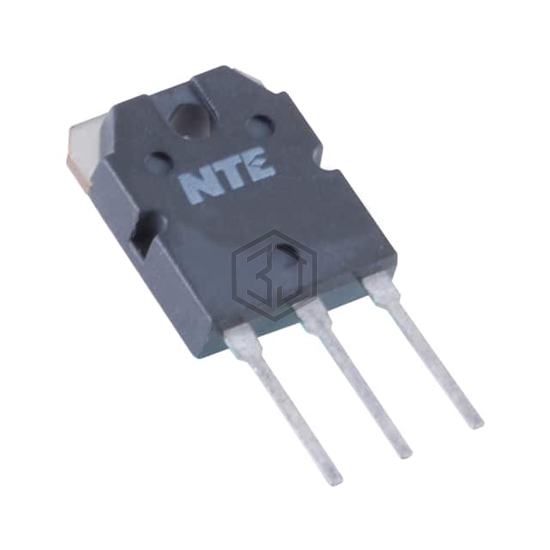

MOSFET-N-CHAN ENHANCEMENT TO-3P
NTE2973 is a Transistors - FETs, MOSFETs - Single manufactured by NTE Electronics, Inc. MOSFET-N-CHAN ENHANCEMENT TO-3P. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C, package / case TO-3P-3, SC-65-3.
In Stock: 252
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 900 V |
| Current - Continuous Drain (Id) @ 25°C | 14A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 850mOhm @ 7A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 2900 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 275W (Tc) |
| Operating Temperature | -55°C ~ 150°C |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-3P |
| Package / Case | TO-3P-3, SC-65-3 |
Submit your RFQ for NTE2973 and get a quote within 24 hours.
