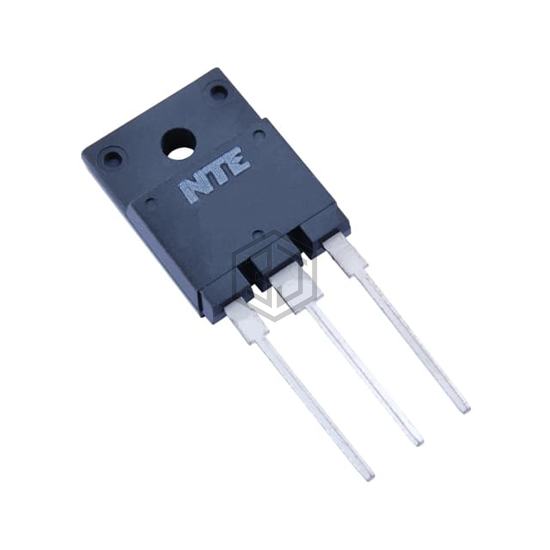

MOSFET N-CHANNEL 100V 31A TO3PML
NTE2930 is a Transistors - FETs, MOSFETs - Single manufactured by NTE Electronics, Inc. MOSFET N-CHANNEL 100V 31A TO3PML. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-3P-3 Full Pack.
In Stock: 364
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 31A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 40mOhm @ 15.5A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 97 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2270 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 100W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-3PML |
| Package / Case | TO-3P-3 Full Pack |
